Bellanca 17-30A Super Viking, N39894: Accident occurred March 01, 2017 near Carson Airport (KCXP), Carson City, Nevada


The National Transportation Safety Board did not travel to the scene of this accident.

Additional Participating Entities:

Federal Aviation Administration / Flight Standards District Office: Reno, Nevada
Continental Motors; Mobile, Alabama

Aviation Accident Final Report - National Transportation Safety Board: https://app.ntsb.gov/pdf

Investigation Docket - National Transportation Safety Board: https://dms.ntsb.gov/pubdms

Aviation Accident Data Summary - National Transportation Safety Board: https://app.ntsb.gov/pdf

http://registry.faa.gov/N39894


Location: Carson City, NV

Accident Number: WPR17LA072
Date & Time: 03/01/2017, 1250 PST
Registration: N39894
Aircraft: BELLANCA 17-30A
Aircraft Damage: Substantial
Defining Event: Fuel related
Injuries: 1 Serious
Flight Conducted Under: Part 91: General Aviation - Personal

Analysis

The airline transport pilot was conducting the airplane's first flight after about 1 1/2 years of inactivity and the completion of an annual inspection. A witness reported that the airplane took off normally, but the retractable landing gear remained extended. As the airplane neared the end of the runway, about 300 ft above ground level, the engine sounded as though it "decreased to idle." The airplane entered a right, 180o turn and descended rapidly before impacting the ground.

During a postaccident test run, the engine operated normally at both idle and full power settings and during abrupt changes between idle and full power. However, it operated inconsistently at 2,100 rpm for about 30 seconds before stabilizing at that power setting. During this time, the fuel pump pressure fluctuated. Following the test run, the fuel manifold valve was disassembled, revealing rust on the screen, lower housing, and plunger, consistent with exposure to water. The diaphragm was removed and a small amount of fuel was found on the "dry" side of the valve; the vent extending from this section was examined and clear of debris. Examination of the airframe and engine maintenance logs revealed that the airplane flew a total of 73 hours and underwent 3 annual inspections in the previous 8 years. It is likely that water accumulated in the fuel system sometime during the airplane's prolonged periods of disuse, resulting in corrosion of the fuel manifold valve's internal components. Because the corrosion was internal, it would not have been detected without disassembly of the fuel manifold, which is not part of the annual inspection procedure. It is likely that this corrosion caused the manifold valve plunger to temporarily stick, which restricted fuel flow to the engine and resulted in the anomalous operation during the postaccident test run as well as the loss of power on the accident flight. Following the loss of engine power, the pilot initiated a turn back to the runway, during which the airplane exceeded its critical angle of attack and experienced an aerodynamic stall.

Probable Cause and Findings

The National Transportation Safety Board determines the probable cause(s) of this accident to be:

A total loss of engine power due to internal corrosion of the fuel manifold valve. Also causal was the pilot's decision to return to the runway following the loss of engine power shortly after takeoff, and his exceedance of the airplane's critical angle of attack during the turn, which resulted in an aerodynamic stall.

Findings

Aircraft

Fuel distribution - Fatigue/wear/corrosion (Cause)
Fuel distribution - Malfunction (Cause)

Personnel issues
Aircraft control - Pilot (Cause)


Factual Information

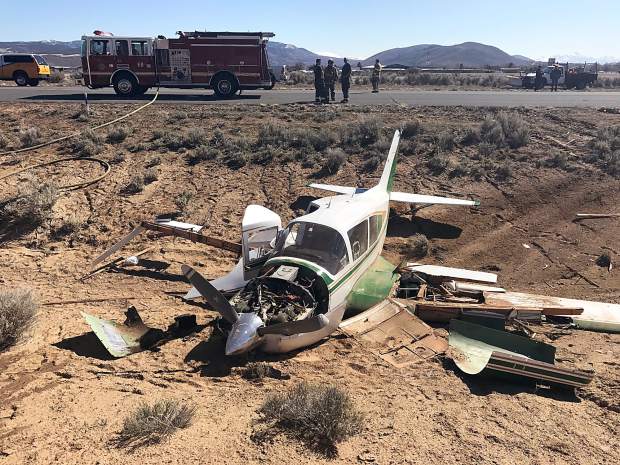

On March 1, 2017, about 1250 Pacific standard time, a Bellanca 17-30A, N39894, experienced a loss of engine power shortly after takeoff from the Carson Airport (CXP), Carson City, Nevada. The pilot, sole occupant, was seriously injured, and the airplane sustained substantial damage to both wings. The airplane was registered to and operated by the pilot as a 14 Code of Federal Regulations Part 91 personal flight. Visual meteorological conditions prevailed at the time of the accident no flight plan was filed for the local flight.

At the time of this report, the pilot was unable to provide a statement or complete the NTSB Pilot/Operator Aircraft Accident/Incident Report Form 6120.1.

A witness reported that he observed the airplane takeoff normally, with the exception that the landing gear remained in the down position. At the end of the runway, when the airplane was no higher than 300 feet, it sounded as if the engine decreased to idle. The airplane made a right 180o turn and descended rapidly before impacting the ground.

Postaccident examination of the airframe revealed continuous control continuity throughout the airframe. In addition, control continuity was established from the cabin to the throttle, mixture, and propeller controls. The fuel lines were intact from the engine to the firewall, and from the wing tanks to the fuselage; the remaining lines were inaccessible due to airframe damage. Air was blown from the engine driven fuel pump inlet line aft through the fuel selector and air/fuel exited the left wing fuel tank outlet line. With no obvious anomalies with the airframe or engine, the engine was shipped to Continental Motors to be run in a test cell.

The engine was installed into a test cell. It started normally and ran for a while at 1,200 RPM with no anomalies noted. The power was increased to 2,100 rpm and the engine operated inconsistently; the fuel pump pressure was fluctuating, and after about 30 seconds the engine stabilized. After stabilization, a magneto check was completed and no abnormalities were noted. The engine power was increased to 2,400 RPM momentarily before full power was applied; the engine continued to operate normally. The engine power was abruptly changed between idle and full power several times with no anomalies noted. Unable to recreate the inconsistent running engine, it was shut down normally and removed from the test cell.

The fuel components were removed from the engine. The fuel manifold valve was disassembled and rust indicative of corrosion was present on the screen and lower housing of the unit. The plunger was removed and it also exhibited rust. The diaphragm was removed and a small amount of fuel was found on the "dry" side of the valve; the vent extending from this section was examined and clear of debris.

The most recent entries from the airplane's airframe and engine maintenance logbooks were three annual inspections that occurred over a span of about 8 years. The tach time difference between these inspections was a total of 73 hours, for an average of 9 hours a year. The wife of the pilot reported that they purchased the airplane in 2002, and it has been parked in a hangar for a majority of their ownership. About 1.5 years leading up to the accident, the airplane had been undergoing an annual inspection and new paint, which was completed on February 24, 2017. When the maintenance was completed, the pilot ran the airplane's engine on the ground for about 45 minutes with no anomalies noted; the accident flight was the first flight post maintenance.

According to a Continental Motors representative the fuel manifold valve is generally not disassembled by a mechanic in the field, and there are rarely issues with this engine component. If fuel issues are suspected, the troubleshooting section of the Continental Motors Standard Practices Manual (M-0) directs the mechanic to an isolated fix. If the problem is isolated to the fuel manifold, it is to be removed and either sent to an appropriate overhaul facility, or replaced by a new or rebuild from Continental Motors.

History of Flight

Initial climb

Fuel related (Defining event)
Loss of engine power (total)
Off-field or emergency landing

Landing
Aerodynamic stall/spin
Collision with terr/obj (non-CFIT)

Pilot Information

Certificate: Airline Transport; Flight Engineer
Age: 61, Male
Airplane Rating(s): Multi-engine Land; Multi-engine Sea; Single-engine Land; Single-engine Sea
Seat Occupied: Left
Other Aircraft Rating(s): Glider
Restraint Used: 3-point
Instrument Rating(s): Airplane
Second Pilot Present: No
Instructor Rating(s): None
Toxicology Performed: No
Medical Certification: Class 1 Without Waivers/Limitations
Last FAA Medical Exam: 10/28/2016
Occupational Pilot: Yes
Last Flight Review or Equivalent:
Flight Time: 22000 hours (Total, all aircraft)



Aircraft and Owner/Operator Information

Aircraft Manufacturer: BELLANCA
Registration: N39894
Model/Series: 17-30A
Aircraft Category: Airplane
Year of Manufacture: 1973
Amateur Built: No
Airworthiness Certificate: Normal
Serial Number: 73-30544
Landing Gear Type: Tricycle
Seats: 4
Date/Type of Last Inspection: 02/24/2017, Annual
Certified Max Gross Wt.:
Time Since Last Inspection: 1 Hours
Engines: 1 Reciprocating
Airframe Total Time: 3394 Hours as of last inspection
Engine Manufacturer: CONT MOTOR
ELT: Not installed
Engine Model/Series: IO 520 SERIES
Registered Owner: On file
Rated Power: 285 hp
Operator: On file
Operating Certificate(s) Held: None

Meteorological Information and Flight Plan


Conditions at Accident Site: Visual Conditions
Condition of Light: Day
Observation Facility, Elevation: CXP, 4705 ft msl
Observation Time: 1255 PST
Distance from Accident Site: 0 Nautical Miles
Direction from Accident Site:
Lowest Cloud Condition: Clear
Temperature/Dew Point: 7°C / -9°C
Lowest Ceiling: None
Visibility: 10 Miles
Wind Speed/Gusts, Direction: 4 knots, 100°
Visibility (RVR):
Altimeter Setting: 30.41 inches Hg
Visibility (RVV):
Precipitation and Obscuration: No Obscuration; No Precipitation
Departure Point: Carson City, NV (CXP)
Type of Flight Plan Filed: None
Destination: Carson City, NV (CXP)
Type of Clearance: None
Departure Time: 1250 PST
Type of Airspace:

Airport Information


Airport: Carson Airport (CXP)
Runway Surface Type: Asphalt
Airport Elevation: 4705 ft
Runway Surface Condition: Dry
Runway Used: 9
IFR Approach: None
Runway Length/Width: 6100 ft / 75 ft
VFR Approach/Landing: Forced Landing

Wreckage and Impact Information

Crew Injuries: 1 Serious
Aircraft Damage: Substantial
Passenger Injuries: N/A
Aircraft Fire: None
Ground Injuries: N/A
Aircraft Explosion: None
Total Injuries: 1 Serious
Latitude, Longitude: 39.192222, -119.732778 (est)



NTSB Identification: WPR17LA072
14 CFR Part 91: General Aviation
Accident occurred Wednesday, March 01, 2017 in Carson City, NV
Aircraft: BELLANCA 17-30A, registration: N39894
Injuries: 1 Serious.

This is preliminary information, subject to change, and may contain errors. Any errors in this report will be corrected when the final report has been completed. NTSB investigators may not have traveled in support of this investigation and used data provided by various sources to prepare this aircraft accident report.

On March 1, 2017, about 1250 Pacific standard time, a Bellanca 17-30A, N39894, experienced a loss of engine power shortly after takeoff from the Carson Airport (CXP), Carson City, Nevada. The pilot, sole occupant, was seriously injured, and the airplane sustained substantial damage to both wings. The airplane was registered to, and operated by, the pilot as a 14 Code of Federal Regulations Part 91 personal flight. Visual meteorological conditions prevailed at the time of the accident and it is unknown if a flight plan was filed. The flight was destined for an unknown location.

A witness reported that they observed the airplane takeoff normally, with the exception that the landing gear remained in the down position. At the end of the runway, when the airplane was no higher than 300 feet, it sounded as if the engine decreased to idle. The airplane made a right 180 degree turn and descended rapidly before impacting the ground.

The airplane has been recovered to a secure location for further examination.
