Thursday, October 6, 2016

Fairchild Hiller FH-1100, N4035G, Helicopter Connection LLC: Fatal accident occurred October 06, 2016 in Lino Lakes, Anoka County, Minnesota

Aviation Accident Final Report - National Transportation Safety Board: https://app.ntsb.gov/pdf

NTSB Identification: CEN17FA012
14 CFR Part 91: General Aviation
Accident occurred Thursday, October 06, 2016 in Lino Lakes, MN
Probable Cause Approval Date: 05/16/2017
Aircraft: FAIRCHILD HILLER FH 1100, registration: N4035G
Injuries: 2 Fatal.

NTSB investigators either traveled in support of this investigation or conducted a significant amount of investigative work without any travel, and used data obtained from various sources to prepare this aircraft accident report.

The airline transport pilot was conducting a local flight with one passenger. The accident flight was the pilot's third flight in the helicopter on the day of the accident; before that day, he had not flown the helicopter in nearly one year. One witness stated that he saw the helicopter rocking back and forth before it "spun sideways" and "a bunch of parts" departed the airframe. Some reported hearing a "clunk" sound, and others reported hearing a "pop" sound. Another witness saw the main rotor blades "seize," then "snap off," followed by the tail rotor departing the helicopter. The witness stated that the helicopter then "dropped out of the sky." The fuselage impacted in an open field, and a postcrash fire erupted. The separated main rotor blades and hub were found in a pond about 500 ft south of the main wreckage.

Examination of the rotor mast showed deformation and fractures consistent with overstress under bending and torsion loads but no evidence of preexisting cracks or corrosion. The observed deformation of the mast was consistent with a mast bumping event. Mast bumping can occur in low acceleration of gravity (G) flight conditions, causing the rotor blade to exceed its flapping limits and resulting in the main rotor hub bumping into the rotor shaft. This often results in structural failure of the rotor shaft and a subsequent separation of the main rotor.

Due to the extensive thermal damage to the wreckage, only a limited examination could be conducted; however, no mechanical malfunctions or anomalies were noted that would have precluded normal operation.

The pilot had accumulated about 15,000 flight hours in airplanes but only had about 55 hours flight time in helicopters, most of which were accumulated more than 1 year before the accident. Although the pilot had received instruction on how to avoid mast bumping, given his low helicopter experience relative to his airplane experience, it is possible that he made a large, abrupt flight control input that resulted in a low-G flight condition and led to the observed mast bumping. However, the pilot's control inputs are unknown, and the initiating event for the mast bumping could not be determined.

The National Transportation Safety Board determines the probable cause(s) of this accident as follows:
The separation of the main rotor assembly due to mast bumping.

Deborah J. 'Deb' (Swanson) Smith


Matthew Gerald Hayes


The National Transportation Safety Board traveled to the scene of this accident.

Additional Participating Entities:
Federal Aviation Administration / Flight Standards District Office; Minneapolis, Minnesota
Rolls Royce; Indianapolis, Indiana

Aviation Accident Factual Report- National Transportation Safety Board: https://app.ntsb.gov/pdf

Investigation Docket - National Transportation Safety Board:   https://dms.ntsb.gov/pubdms

Helicopter Connection LLC: http://registry.faa.gov/N4035G



NTSB Identification: CEN17FA012

14 CFR Part 91: General Aviation
Accident occurred Thursday, October 06, 2016 in Lino Lakes, MN
Aircraft: FAIRCHILD HILLER FH 1100, registration: N4035G
Injuries: 2 Fatal.

NTSB investigators either traveled in support of this investigation or conducted a significant amount of investigative work without any travel, and used data obtained from various sources to prepare this aircraft accident report.

HISTORY OF FLIGHT

On October 6, 2016, about 1645 central daylight time, a Fairchild Hiller FH-1100 helicopter, N4035G, was destroyed when it impacted the ground near Lino Lakes, Minnesota, following an in-flight separation of the main rotor assembly. The airline transport pilot and passenger sustained fatal injuries, and the helicopter was destroyed. The helicopter was registered to Helicopter Connection LLC, and operated by the pilot under the provisions of 14 Code of Federal Regulations Part 91 as personal flight. Day visual meteorological conditions prevailed, and no flight plan was filed for the local flight, which originated from the Anoka County-Blaine Airport (ANE), near Minneapolis, Minnesota, about 1620.

According to a pilot-rated passenger who had flown with the accident pilot in the helicopter earlier in the day, the accident pilot had not flown the helicopter for about a year and wanted the passenger to "ride along" as a safety pilot. Both the pilot and passenger performed a preflight inspection of the helicopter, which revealed no anomalies. About 1000, they departed on a 5-minute flight then returned and went to lunch. After lunch, they departed on a local flight, which lasted about 45 minutes. After the flight, the passenger asked the pilot if he wanted help moving the helicopter into the hangar, and the pilot indicated that he may fly the helicopter later.

Later that day, several witnesses saw the helicopter flying in a northerly direction. One witness stated that he observed the helicopter rocking back and forth before it "spun sideways" and "a bunch of parts" departed the helicopter. Some reported hearing a "clunk" sound, and others reported hearing a "pop" sound. One witness saw the main rotor blades "seize," then "snap off," followed by the tail rotor departing the helicopter. The witness stated that the helicopter then "dropped out of the sky." Several of the witnesses saw parts departing the helicopter as it descended to ground contact.

PERSONNEL INFORMATION

The 48-year-old pilot held an airline transport pilot certificate with an airplane multi-engine land rating. He held commercial pilot privileges in airplane single engine land, airplane single engine sea, and rotorcraft-helicopter. The pilot also held a flight instructor certificate with airplane single- and multi-engine and instrument airplane ratings. He held a flight engineer certificate with a turbojet rating. The pilot held a Federal Aviation Administration (FAA) special issuance first class medical certificate, dated August 16, 2016, with limitations for corrective lenses and not valid for any class after February 28, 2017. The pilot reported that he had accumulated 15,000 total hours of flight time and 400 hours of flight time during the six months before the medical exam. The last entry in the pilot's logbook was dated September 4, 2015, which was the date he passed his commercial rotorcraft-helicopter checkride. The pilot accumulated 55.5 hours of total flight experience in helicopters at the time of that entry, of which about 38 hours were in the accident helicopter make and model.

The pilot's helicopter flight instructor reported that, from April 15, 2015, to August 4, 2015, he provided instruction to the pilot in the accident helicopter to prepare him for his checkride to obtain a rotorcraft-helicopter rating. The flight instructor stated that the pilot had some trouble at first in the transition from fixed wing to helicopter and that this is fairly common for high-time fixed-wing pilots, such as the accident pilot. After some time, the accident pilot seemed to handle the transition as well as any other of his students that had previous fixed-wing time.

The instructor stated that he gave the pilot ground instruction on teetering rotor systems. When asked how the pilot responded during training situations that could precipitate mast bumping, the instructor stated that the pilot responded correctly to flight in turbulent conditions. He added that, during power loss simulations, the pilot initially was slow to lower the collective and would allow the nose to drop. Eventually, the pilot demonstrated proper entry into and proficiency in autorotations.

The pilot's helicopter flight instructor reported that all the instruction he provided to the pilot took place near Lake Charles, Louisiana, and, after passing his rotorcraft-helicopter checkride, the pilot trailered the helicopter to the Minneapolis area. During the trip, one of the doors of the helicopter came open and cracked the windshield of the helicopter. According to the flight instructor, the pilot had just completed replacement of the windshield a short time before the accident.

AIRCRAFT INFORMATION

The accident helicopter was issued an FAA standard airworthiness certificate on October 20, 1982, and was certificated for normal category operations. The Allison (Rolls Royce) model M250-C20B engine powered a two-bladed, teetering main rotor system. The engine manufacturer indicated that the rated horsepower for the M250-C20B engine is 420 shaft horsepower. According to the helicopter's type certificate data sheet, the engine had a takeoff power rating of 274 shaft horsepower (hp) for a maximum of 5 minutes, and a maximum continuous power rating of 233 shaft hp. The helicopter had a maximum gross weight of 2,750 lbs and could be configured to accommodate a pilot, another pilot or passenger in the cockpit, and three passengers in the cabin. The helicopter's flight manual had limitations to prohibit acrobatic flight and to avoid abrupt control movements when flying in turbulence. The helicopter's most recent annual inspection was completed on June 18, 2015, at a total time in service of 501.7 hours.

In January 2004, the helicopter manufacturer issued Alert Service Letter 23 - 5. The letter indicated that several instances of internal and external mast corrosion had been discovered even when the mast was properly sealed. The corrective action was to remove the transmission top case, with the mast attached, and ship the assembly to the factory for non-destructive inspections. A special coating was to be applied on the interior surfaces. This process is only approved at the factory and cannot be performed in the field. Subsequent to the initial inspection, this process must be done at each overhaul of the transmission or every 10 years whichever comes first.

METEOROLOGICAL INFORMATION

At 1645, the recorded weather at ANE, about 4 miles southwest of the accident site, included wind from 010° at 6 knots, visibility 10 statute miles, overcast clouds at 6,000 feet; temperature 15°C, dew point 6°C, and an altimeter of 29.95 inches of mercury.



WRECKAGE AND IMPACT INFORMATION

The main wreckage came to rest on its right side about 4 nautical miles and 52° magnetic from ANE, on a heading about 20° magnetic. The area around the main wreckage was discolored and charred, consistent with a postaccident ground fire. The remaining sections of wreckage did not exhibit any evidence of pre- or postimpact fire.

The initial piece of wreckage was a section of composite material located about 1,675 ft south of the main wreckage. A debris path extended to the main wreckage and contained the floor mats, a section of white interior material, an exhaust stack, exhaust duct, a section of the tailboom, the engine cowl, a section of exterior metal with the rotating beacon, a seat cushion, and a section of the tail, including the tail rotor and its gearbox. The separated main rotor blades and hub were found east of this debris path in a pond about 500 ft south of the main wreckage. All major components were accounted for at the scene.

The main wreckage, consisting of the cockpit and cabin, was destroyed by impact and postimpact fire. Cyclic, collective, and tail rotor control continuity could not be established due to substantial damage to the cockpit and cabin areas. However, all observed control discontinuities were consistent with overload or thermal damage.

The engine, transmission, and tail rotor driveshafts exhibited separations. All observed separations were consistent with torsional overload and overload. Circumferential witness marks were observed on the exterior of the tail rotor driveshaft.

The main transmission exhibited sections with thermal melting damage, soot-colored discoloration, and deformation. The separation surface at the top of the mast exhibited overload fractures. The mast could not be rotated by hand.

The main rotor blades and hub exhibited overload fractures on the separation surface. Examination of the main rotor system and components found outside the main wreckage site did not exhibit soot colored discoloration or thermal damage.

Examination of the engine revealed that several compressor blades were missing. The remaining compressor blades were found bent opposite the direction of rotation.

A section of the transmission's main rotor mast and the section of mast from the main rotor hub were removed and were sent to the National Transportation Safety Board (NTSB) Materials Laboratory for detailed examination.

MEDICAL AND PATHOLOGICAL INFORMATION

An Anoka County Coroner arranged for the Midwest Medical Examiner's Office, Ramsey, Minnesota, to conduct an autopsy on the pilot. Toxicological samples were taken during the autopsy. The cause of death was listed as multiple blunt force injuries and the manner of death was indicated as an accident.

The FAA Bioaeronautical Sciences Research Laboratory, Oklahoma City, Oklahoma, performed toxicology testing on the pilot. Testing was negative for carbon monoxide, ethanol, and all tested-for drugs.

TESTS AND RESEARCH

The retained sections of rotor mast were examined by the NTSB Materials Laboratory. The mast showed deformation and fractures on slant angles consistent with an overstress fracture under bending and torsion loads. Deformation to the mast associated with impact marks adjacent to the fracture were consistent with mast bumping. No evidence of preexisting cracks or corrosion was observed.

ADDITIONAL INFORMATION

The NTSB database was queried for previous mast bumping accidents with Fairchild-Hiller FH 1100 helicopters. The FTW68A0085, NYC83FA102, LAX83FA362, IAD98FA049, and DFW07FA198 investigations listed occurrences of mast bumping findings and their reports are appended to the docket material associated with this investigation.

The NTSB database also contained the CHI00FA266 investigation. Internal corrosion was observed within the main rotor mast on that helicopter. This previous investigation report is also appended to the docket material associated with this investigation.

The FAA Helicopter Flying Handbook (FAA-H-8083-21A), in part, stated:

Low-G Conditions and Mast Bumping
Low acceleration of gravity (low-G or weightless) maneuvers create specific hazards for helicopters, especially those with semirigid main rotor systems because helicopters are primarily designed to be suspended from the main rotor in normal flight with only small variations for positive G load maneuvers. Since a helicopter low-G maneuver departs from normal flight conditions, it may allow the airframe to exceed the manufacturer's design criteria. A low-G condition could have disastrous results, the best way to prevent it from happening is to avoid the conditions in which it might occur.

Low-G conditions are not about the loss of thrust, rather the imbalance of forces. Helicopters are mostly designed to have weight (gravity pulling down to the earth) and lift opposing that force of gravity. Low-G maneuvers occur when this balance is disturbed. An example of this would be placing the helicopter into a very steep dive. At the moment of pushover, the lift and thrust of the rotor is forward, whereas gravity is now vertical or straight down. Since the lift vector is no longer vertical and opposing the gravity (or weight) vector, the fuselage is now affected by the tail rotor thrust below the plane of the main rotor. This tail rotor thrust moment tends to make the helicopter fuselage tilt to the left. Pilots then apply right cyclic inputs to try to correct for the left. Since the main rotor system does not fully support the fuselage at this point, the fuselage continues to roll and the pilot applies more right cyclic until the rotor system strikes the mast (mast bumping), often ending with unnecessary fatal results. In mast bumping, the rotor blade exceeds its flapping limits, causing the main rotor hub to "bump" into the rotor shaft. The main rotor hub's contact with the mast usually becomes more violent with each successive flapping motion. This creates a greater flapping displacement and leads to structural failure of the rotor shaft. Since the mast is hollow, the structural failure manifests itself either as shaft failure with complete separation of the main rotor system from the helicopter or a severely damaged rotor mast.

In situations like the one described above, the helicopter pilot should first apply aft cyclic to bring the vectors into balance, with lift up and gravity down. Since helicopter blades carry the helicopter and have limited motion attachment, care must be given to those attachment limits. Helicopter pilots should always adhere to the maneuvering limitations stated in the [rotorcraft flight manual]. There may be more than one reason or design criteria which limits the helicopter's flight envelope. Heed all of the manufacturer's limitations and advisory data. Failure to do so could lead to dire, unintended consequences.


NTSB Identification: CEN17FA012
14 CFR Part 91: General Aviation
Accident occurred Thursday, October 06, 2016 in Lino Lakes, MN
Aircraft: FAIRCHILD HILLER FH 1100, registration: N4035G
Injuries: 2 Fatal.

This is preliminary information, subject to change, and may contain errors. Any errors in this report will be corrected when the final report has been completed. NTSB investigators either traveled in support of this investigation or conducted a significant amount of investigative work without any travel, and used data obtained from various sources to prepare this aircraft accident report.

On October 6, 2016, about 1645 central daylight time, a Fairchild Hiller FH 1100 helicopter, N4035G, impacted terrain during an in-flight breakup and collision with terrain while maneuvering near Lino Lakes, Minnesota. The cockpit and cabin areas were consumed by a post-crash fire. The airline transport pilot and his passenger sustained fatal injuries. The helicopter was destroyed during the impact and fire. The helicopter was registered to Helicopter Connection LLC. and operated by the pilot under the provisions of 14 Code of Federal Regulations Part 91 as personal flight. Day visual meteorological conditions prevailed for the flight, which did not operate on a flight plan. The local flight originated from the Anoka County-Blaine Airport (ANE), near Minneapolis, Minnesota, about 1620.

In preliminary information given to the Federal Aviation Administration (FAA), several witnesses said the helicopter was maneuvering from an east bound heading to a north bound heading. They heard a loud noise, saw pieces separate from the helicopter, saw the rotor blade separate, and saw a fire.

The 48-year-old pilot held an FAA airline transport pilot certificate with an airplane multi-engine land rating. He held commercial pilot privileges in airplane single engine land, airplane single engine sea, and rotorcraft helicopter. The pilot held a flight Instructor certificate with airplane single and multi-engine land and instrument airplane ratings. He held a flight engineer certificate with a turbojet rating. The pilot held a FAA special issuance first class medical certificate, dated August 16, 2016, with the following limitations: Must wear corrective lenses. Not valid for any class after 02/28/2017. The pilot reported that he had accumulated 15,000 hours of total flight time and 400 hours of flight time in the six months before the exam. The last entry in the pilot's logbook was dated September 4, 2015. The pilot accumulated 55.5 hours of total flight time in a helicopter at the time of that entry.

N4035G, was registered as a Fairchild-Hiller FH 1100 helicopter with serial number 502. According to FAA airworthiness records, the helicopter was issued a FAA standard airworthiness certificate on October 20, 1982, and was certified for normal category operations. The accident helicopter's data plate was not located in the wreckage. However, according to logbook records, the engine's serial number was listed as CAE823229. The information on the installed engine's data plate indicated the engine was an Allison (Rolls Royce) C20B engine with serial number CAE823229F, which powered a two-bladed, teetering rotor system. According to the type certificate data sheet, it had a maximum gross weight of 2,750 lbs and could be configured to accommodate a pilot, another pilot or passenger in the cockpit, and three passengers in the cabin. The last recorded annual inspection was completed on June 18, 2016, and the endorsement indicated that the helicopter had accumulated 501.7 hours of total time.

At 1645, the recorded weather at ANE was: Wind 010 degrees at 6 knots; visibility 10 statute miles; sky condition overcast clouds at 6,000 feet: temperature 15 degrees C; dew point 6 degrees C; altimeter 29.95 inches of mercury.

The main wreckage was found resting on its right side about 1,600 feet and 130 degrees from the intersection of Main Street and Sunset Avenue. Its resting heading was about 020 degrees magnetic. The wreckage found furthest south was a section of composite material, which was about 2,775 feet and 163 degrees from the same intersection. The heading and distance from the composite material to the main wreckage was about 15 degrees and 1,675 feet. Along this path, major components were found that included the floor mats, a section of white interior material, an exhaust stack, exhaust duct, a section of the tailboom with danger and an arrow printed on it, the engine cowl, a section of exterior metal with the rotating beacon, a seat cushion, a section of the tail that included the tail rotor and its gearbox, and the main wreckage at the end of this path. However, the separated main rotor blades and hub were found east of this debris path about 500 feet south of the main wreckage in a pond. All major components were accounted for at the scene.

The cockpit and cabin were deformed, discolored, charred, and melted consistent with a ground fire and impact damage. Cyclic, collective, and tail rotor control continuity could not be established due to this sustained damage to the cockpit and cabin areas. All observed control discontinuities were consistent with overload or thermal damage.

Engine, transmission, and tailrotor driveshafts exhibited separations. All observed separations were consistent with torsional overload and overload. Circumferential witness marks were found on the exterior of the tailrotor driveshaft.

The main transmission exhibited sections with thermal melting damage, soot colored discoloration, and deformation. The separation surface at the top of the mast exhibited overload fractures. The mast could not be rotated by hand.

The main rotor blades and hub that were recovered from the pond exhibited overload fractures on its mast's separation surface. Examination of the main rotor system and components outside the main wreckage did not exhibit soot colored discoloration or thermal damage.

Examination of the engine revealed that some compressor blades were missing. The observed remaining compressor blades were bent opposite the direction of rotation.

The coroner was asked to arrange for an autopsy to be performed on the pilot and take samples for toxicological testing.

A section of the transmission's mast and the section of mast from the main rotor hub were removed and were sent to the National Transportation Safety Board's Materials Laboratory for detailed examination. The National Transportation Safety Board traveled to the scene of this accident.

Additional Participating Entities:
Federal Aviation Administration / Flight Standards District Office; Minneapolis, Minnesota
Rolls Royce; Indianapolis, Indiana

Aviation Accident Factual Report- National Transportation Safety Board: https://app.ntsb.gov/pdf

Investigation Docket - National Transportation Safety Board:   https://dms.ntsb.gov/pubdms

Registered to Helicopter Connection LLC
Operated by the pilot
http://registry.faa.gov/N4035G

NTSB Identification: CEN17FA012

14 CFR Part 91: General Aviation
Accident occurred Thursday, October 06, 2016 in Lino Lakes, MN
Aircraft: FAIRCHILD HILLER FH 1100, registration: N4035G
Injuries: 2 Fatal.

NTSB investigators either traveled in support of this investigation or conducted a significant amount of investigative work without any travel, and used data obtained from various sources to prepare this aircraft accident report.

HISTORY OF FLIGHT

On October 6, 2016, about 1645 central daylight time, a Fairchild Hiller FH-1100 helicopter, N4035G, was destroyed when it impacted the ground near Lino Lakes, Minnesota, following an in-flight separation of the main rotor assembly. The airline transport pilot and passenger sustained fatal injuries, and the helicopter was destroyed. The helicopter was registered to Helicopter Connection LLC, and operated by the pilot under the provisions of 14 Code of Federal Regulations Part 91 as personal flight. Day visual meteorological conditions prevailed, and no flight plan was filed for the local flight, which originated from the Anoka County-Blaine Airport (ANE), near Minneapolis, Minnesota, about 1620.

According to a pilot-rated passenger who had flown with the accident pilot in the helicopter earlier in the day, the accident pilot had not flown the helicopter for about a year and wanted the passenger to "ride along" as a safety pilot. Both the pilot and passenger performed a preflight inspection of the helicopter, which revealed no anomalies. About 1000, they departed on a 5-minute flight then returned and went to lunch. After lunch, they departed on a local flight, which lasted about 45 minutes. After the flight, the passenger asked the pilot if he wanted help moving the helicopter into the hangar, and the pilot indicated that he may fly the helicopter later.

Later that day, several witnesses saw the helicopter flying in a northerly direction. One witness stated that he observed the helicopter rocking back and forth before it "spun sideways" and "a bunch of parts" departed the helicopter. Some reported hearing a "clunk" sound, and others reported hearing a "pop" sound. One witness saw the main rotor blades "seize," then "snap off," followed by the tail rotor departing the helicopter. The witness stated that the helicopter then "dropped out of the sky." Several of the witnesses saw parts departing the helicopter as it descended to ground contact.


PERSONNEL INFORMATION

The 48-year-old pilot held an airline transport pilot certificate with an airplane multi-engine land rating. He held commercial pilot privileges in airplane single engine land, airplane single engine sea, and rotorcraft-helicopter. The pilot also held a flight instructor certificate with airplane single- and multi-engine and instrument airplane ratings. He held a flight engineer certificate with a turbojet rating. The pilot held a Federal Aviation Administration (FAA) special issuance first class medical certificate, dated August 16, 2016, with limitations for corrective lenses and not valid for any class after February 28, 2017. The pilot reported that he had accumulated 15,000 total hours of flight time and 400 hours of flight time during the six months before the medical exam. The last entry in the pilot's logbook was dated September 4, 2015, which was the date he passed his commercial rotorcraft-helicopter checkride. The pilot accumulated 55.5 hours of total flight experience in helicopters at the time of that entry, of which about 38 hours were in the accident helicopter make and model.

The pilot's helicopter flight instructor reported that, from April 15, 2015, to August 4, 2015, he provided instruction to the pilot in the accident helicopter to prepare him for his checkride to obtain a rotorcraft-helicopter rating. The flight instructor stated that the pilot had some trouble at first in the transition from fixed wing to helicopter and that this is fairly common for high-time fixed-wing pilots, such as the accident pilot. After some time, the accident pilot seemed to handle the transition as well as any other of his students that had previous fixed-wing time.

The instructor stated that he gave the pilot ground instruction on teetering rotor systems. When asked how the pilot responded during training situations that could precipitate mast bumping, the instructor stated that the pilot responded correctly to flight in turbulent conditions. He added that, during power loss simulations, the pilot initially was slow to lower the collective and would allow the nose to drop. Eventually, the pilot demonstrated proper entry into and proficiency in autorotations.

The pilot's helicopter flight instructor reported that all the instruction he provided to the pilot took place near Lake Charles, Louisiana, and, after passing his rotorcraft-helicopter checkride, the pilot trailered the helicopter to the Minneapolis area. During the trip, one of the doors of the helicopter came open and cracked the windshield of the helicopter. According to the flight instructor, the pilot had just completed replacement of the windshield a short time before the accident.


AIRCRAFT INFORMATION

The accident helicopter was issued an FAA standard airworthiness certificate on October 20, 1982, and was certificated for normal category operations. The Allison (Rolls Royce) model M250-C20B engine powered a two-bladed, teetering main rotor system. The engine manufacturer indicated that the rated horsepower for the M250-C20B engine is 420 shaft horsepower. According to the helicopter's type certificate data sheet, the engine had a takeoff power rating of 274 shaft horsepower (hp) for a maximum of 5 minutes, and a maximum continuous power rating of 233 shaft hp. The helicopter had a maximum gross weight of 2,750 lbs and could be configured to accommodate a pilot, another pilot or passenger in the cockpit, and three passengers in the cabin. The helicopter's flight manual had limitations to prohibit acrobatic flight and to avoid abrupt control movements when flying in turbulence. The helicopter's most recent annual inspection was completed on June 18, 2015, at a total time in service of 501.7 hours.

In January 2004, the helicopter manufacturer issued Alert Service Letter 23 - 5. The letter indicated that several instances of internal and external mast corrosion had been discovered even when the mast was properly sealed. The corrective action was to remove the transmission top case, with the mast attached, and ship the assembly to the factory for non-destructive inspections. A special coating was to be applied on the interior surfaces. This process is only approved at the factory and cannot be performed in the field. Subsequent to the initial inspection, this process must be done at each overhaul of the transmission or every 10 years whichever comes first.


METEOROLOGICAL INFORMATION

At 1645, the recorded weather at ANE, about 4 miles southwest of the accident site, included wind from 010° at 6 knots, visibility 10 statute miles, overcast clouds at 6,000 feet; temperature 15°C, dew point 6°C, and an altimeter of 29.95 inches of mercury.


WRECKAGE AND IMPACT INFORMATION

The main wreckage came to rest on its right side about 4 nautical miles and 52° magnetic from ANE, on a heading about 20° magnetic. The area around the main wreckage was discolored and charred, consistent with a postaccident ground fire. The remaining sections of wreckage did not exhibit any evidence of pre- or postimpact fire.

The initial piece of wreckage was a section of composite material located about 1,675 ft south of the main wreckage. A debris path extended to the main wreckage and contained the floor mats, a section of white interior material, an exhaust stack, exhaust duct, a section of the tailboom, the engine cowl, a section of exterior metal with the rotating beacon, a seat cushion, and a section of the tail, including the tail rotor and its gearbox. The separated main rotor blades and hub were found east of this debris path in a pond about 500 ft south of the main wreckage. All major components were accounted for at the scene.

The main wreckage, consisting of the cockpit and cabin, was destroyed by impact and postimpact fire. Cyclic, collective, and tail rotor control continuity could not be established due to substantial damage to the cockpit and cabin areas. However, all observed control discontinuities were consistent with overload or thermal damage.

The engine, transmission, and tail rotor driveshafts exhibited separations. All observed separations were consistent with torsional overload and overload. Circumferential witness marks were observed on the exterior of the tail rotor driveshaft.

The main transmission exhibited sections with thermal melting damage, soot-colored discoloration, and deformation. The separation surface at the top of the mast exhibited overload fractures. The mast could not be rotated by hand.

The main rotor blades and hub exhibited overload fractures on the separation surface. Examination of the main rotor system and components found outside the main wreckage site did not exhibit soot colored discoloration or thermal damage.

Examination of the engine revealed that several compressor blades were missing. The remaining compressor blades were found bent opposite the direction of rotation.

A section of the transmission's main rotor mast and the section of mast from the main rotor hub were removed and were sent to the National Transportation Safety Board (NTSB) Materials Laboratory for detailed examination.


MEDICAL AND PATHOLOGICAL INFORMATION

An Anoka County Coroner arranged for the Midwest Medical Examiner's Office, Ramsey, Minnesota, to conduct an autopsy on the pilot. Toxicological samples were taken during the autopsy. The cause of death was listed as multiple blunt force injuries and the manner of death was indicated as an accident.

The FAA Bioaeronautical Sciences Research Laboratory, Oklahoma City, Oklahoma, performed toxicology testing on the pilot. Testing was negative for carbon monoxide, ethanol, and all tested-for drugs.


TESTS AND RESEARCH

The retained sections of rotor mast were examined by the NTSB Materials Laboratory. The mast showed deformation and fractures on slant angles consistent with an overstress fracture under bending and torsion loads. Deformation to the mast associated with impact marks adjacent to the fracture were consistent with mast bumping. No evidence of preexisting cracks or corrosion was observed.


ADDITIONAL INFORMATION

The NTSB database was queried for previous mast bumping accidents with Fairchild-Hiller FH 1100 helicopters. The FTW68A0085, NYC83FA102, LAX83FA362, IAD98FA049, and DFW07FA198 investigations listed occurrences of mast bumping findings and their reports are appended to the docket material associated with this investigation.

The NTSB database also contained the CHI00FA266 investigation. Internal corrosion was observed within the main rotor mast on that helicopter. This previous investigation report is also appended to the docket material associated with this investigation.

The FAA Helicopter Flying Handbook (FAA-H-8083-21A), in part, stated:

Low-G Conditions and Mast Bumping
Low acceleration of gravity (low-G or weightless) maneuvers create specific hazards for helicopters, especially those with semirigid main rotor systems because helicopters are primarily designed to be suspended from the main rotor in normal flight with only small variations for positive G load maneuvers. Since a helicopter low-G maneuver departs from normal flight conditions, it may allow the airframe to exceed the manufacturer's design criteria. A low-G condition could have disastrous results, the best way to prevent it from happening is to avoid the conditions in which it might occur.

Low-G conditions are not about the loss of thrust, rather the imbalance of forces. Helicopters are mostly designed to have weight (gravity pulling down to the earth) and lift opposing that force of gravity. Low-G maneuvers occur when this balance is disturbed. An example of this would be placing the helicopter into a very steep dive. At the moment of pushover, the lift and thrust of the rotor is forward, whereas gravity is now vertical or straight down. Since the lift vector is no longer vertical and opposing the gravity (or weight) vector, the fuselage is now affected by the tail rotor thrust below the plane of the main rotor. This tail rotor thrust moment tends to make the helicopter fuselage tilt to the left. Pilots then apply right cyclic inputs to try to correct for the left. Since the main rotor system does not fully support the fuselage at this point, the fuselage continues to roll and the pilot applies more right cyclic until the rotor system strikes the mast (mast bumping), often ending with unnecessary fatal results. In mast bumping, the rotor blade exceeds its flapping limits, causing the main rotor hub to "bump" into the rotor shaft. The main rotor hub's contact with the mast usually becomes more violent with each successive flapping motion. This creates a greater flapping displacement and leads to structural failure of the rotor shaft. Since the mast is hollow, the structural failure manifests itself either as shaft failure with complete separation of the main rotor system from the helicopter or a severely damaged rotor mast.


In situations like the one described above, the helicopter pilot should first apply aft cyclic to bring the vectors into balance, with lift up and gravity down. Since helicopter blades carry the helicopter and have limited motion attachment, care must be given to those attachment limits. Helicopter pilots should always adhere to the maneuvering limitations stated in the [rotorcraft flight manual]. There may be more than one reason or design criteria which limits the helicopter's flight envelope. Heed all of the manufacturer's limitations and advisory data. Failure to do so could lead to dire, unintended consequences.

NTSB Identification: CEN17FA012
14 CFR Part 91: General Aviation
Accident occurred Thursday, October 06, 2016 in Lino Lakes, MN
Aircraft: FAIRCHILD HILLER FH 1100, registration: N4035G
Injuries: 2 Fatal.

This is preliminary information, subject to change, and may contain errors. Any errors in this report will be corrected when the final report has been completed. NTSB investigators either traveled in support of this investigation or conducted a significant amount of investigative work without any travel, and used data obtained from various sources to prepare this aircraft accident report.

On October 6, 2016, about 1645 central daylight time, a Fairchild Hiller FH 1100 helicopter, N4035G, impacted terrain during an in-flight breakup and collision with terrain while maneuvering near Lino Lakes, Minnesota. The cockpit and cabin areas were consumed by a post-crash fire. The airline transport pilot and his passenger sustained fatal injuries. The helicopter was destroyed during the impact and fire. The helicopter was registered to Helicopter Connection LLC. and operated by the pilot under the provisions of 14 Code of Federal Regulations Part 91 as personal flight. Day visual meteorological conditions prevailed for the flight, which did not operate on a flight plan. The local flight originated from the Anoka County-Blaine Airport (ANE), near Minneapolis, Minnesota, about 1620.

In preliminary information given to the Federal Aviation Administration (FAA), several witnesses said the helicopter was maneuvering from an east bound heading to a north bound heading. They heard a loud noise, saw pieces separate from the helicopter, saw the rotor blade separate, and saw a fire.

The 48-year-old pilot held an FAA airline transport pilot certificate with an airplane multi-engine land rating. He held commercial pilot privileges in airplane single engine land, airplane single engine sea, and rotorcraft helicopter. The pilot held a flight Instructor certificate with airplane single and multi-engine land and instrument airplane ratings. He held a flight engineer certificate with a turbojet rating. The pilot held a FAA special issuance first class medical certificate, dated August 16, 2016, with the following limitations: Must wear corrective lenses. Not valid for any class after 02/28/2017. The pilot reported that he had accumulated 15,000 hours of total flight time and 400 hours of flight time in the six months before the exam. The last entry in the pilot's logbook was dated September 4, 2015. The pilot accumulated 55.5 hours of total flight time in a helicopter at the time of that entry.

N4035G, was registered as a Fairchild-Hiller FH 1100 helicopter with serial number 502. According to FAA airworthiness records, the helicopter was issued a FAA standard airworthiness certificate on October 20, 1982, and was certified for normal category operations. The accident helicopter's data plate was not located in the wreckage. However, according to logbook records, the engine's serial number was listed as CAE823229. The information on the installed engine's data plate indicated the engine was an Allison (Rolls Royce) C20B engine with serial number CAE823229F, which powered a two-bladed, teetering rotor system. According to the type certificate data sheet, it had a maximum gross weight of 2,750 lbs and could be configured to accommodate a pilot, another pilot or passenger in the cockpit, and three passengers in the cabin. The last recorded annual inspection was completed on June 18, 2016, and the endorsement indicated that the helicopter had accumulated 501.7 hours of total time.

At 1645, the recorded weather at ANE was: Wind 010 degrees at 6 knots; visibility 10 statute miles; sky condition overcast clouds at 6,000 feet: temperature 15 degrees C; dew point 6 degrees C; altimeter 29.95 inches of mercury.

The main wreckage was found resting on its right side about 1,600 feet and 130 degrees from the intersection of Main Street and Sunset Avenue. Its resting heading was about 020 degrees magnetic. The wreckage found furthest south was a section of composite material, which was about 2,775 feet and 163 degrees from the same intersection. The heading and distance from the composite material to the main wreckage was about 15 degrees and 1,675 feet. Along this path, major components were found that included the floor mats, a section of white interior material, an exhaust stack, exhaust duct, a section of the tailboom with danger and an arrow printed on it, the engine cowl, a section of exterior metal with the rotating beacon, a seat cushion, a section of the tail that included the tail rotor and its gearbox, and the main wreckage at the end of this path. However, the separated main rotor blades and hub were found east of this debris path about 500 feet south of the main wreckage in a pond. All major components were accounted for at the scene.

The cockpit and cabin were deformed, discolored, charred, and melted consistent with a ground fire and impact damage. Cyclic, collective, and tail rotor control continuity could not be established due to this sustained damage to the cockpit and cabin areas. All observed control discontinuities were consistent with overload or thermal damage.

Engine, transmission, and tailrotor driveshafts exhibited separations. All observed separations were consistent with torsional overload and overload. Circumferential witness marks were found on the exterior of the tailrotor driveshaft.

The main transmission exhibited sections with thermal melting damage, soot colored discoloration, and deformation. The separation surface at the top of the mast exhibited overload fractures. The mast could not be rotated by hand.

The main rotor blades and hub that were recovered from the pond exhibited overload fractures on its mast's separation surface. Examination of the main rotor system and components outside the main wreckage did not exhibit soot colored discoloration or thermal damage.

Examination of the engine revealed that some compressor blades were missing. The observed remaining compressor blades were bent opposite the direction of rotation.

The coroner was asked to arrange for an autopsy to be performed on the pilot and take samples for toxicological testing.

A section of the transmission's mast and the section of mast from the main rotor hub were removed and were sent to the National Transportation Safety Board's Materials Laboratory for detailed examination.

Those who may have information that might be relevant to the National Transportation Safety Board investigation may contact them by email eyewitnessreport@ntsb.gov,  and any friends and family who want to contact investigators about the accident should email assistance@ntsb.gov.

The man and woman killed last week in a helicopter crash in Lino Lakes have been positively identified as Matthew Hayes, 48, and Deborah Smith, 47.

The Midwest Medical Examiner’s Office released the identities Monday afternoon. Both died of injuries from the crash late Thursday afternoon.

The crash is being investigated by the Anoka County sheriff’s office and federal agencies. Based on preliminary information, officials believe Hayes, of Minneapolis, piloted the helicopter, departing from Anoka County Airport in Blaine with Smith, of Blaine, as his passenger.

The helicopter, a 1982 Fairchild Hiller FH-1100, crashed shortly after 5:30 p.m. in an open field near Sunset Avenue and Main Street, not far from a residential neighborhood. It had been in flight earlier in the day with no issues reported.




LINO LAKES, Minn. - The Anoka County Sheriff Office confirms that two people lost their lives in a helicopter crash in Lino Lakes Thursday night.

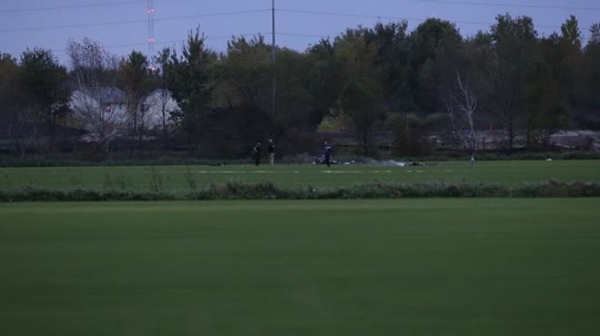

The chopper went down in a field around 5:30 p.m. near Main Street and Sunset Avenue.

Authorities say the size of the impact area plus a large fireball of the debris that followed made it impossible for anyone to survive the crash. The trail of debris from the initial impact site was several hundred yards long.

The pilot was a 48-year-old man from Minneapolis and his passenger was a 47-year-old woman from Blaine. Their names are being withheld until family notification.

"It landed in an open field but we're very close to dense residential neighborhoods," said Anoka County Sheriff's Cmdr. Paul Sommer.

No one on the ground was hurt.

Witnesses said they saw the helicopter traveling in a northeast direction before suddenly experiencing distress. Sommer says those near the scene reported hearing a loud "pop" or "explosion" before seeing the helicopter's blade stop turning and the helicopter fall from the sky.

Officials say based on the amount of debris and its placement, it seems the helicopter was breaking apart as it fell from the sky.

Others, like Shane Chatleain says he didn't just hear an explosion before the crash, he felt it.

“Shook the house, rattled the house pretty significantly," he said.

When he ran to his bedroom window, he says he could still see debris filling the air.

“I did see the back portion of (the helicopter) land in the field over here," Chatleain said. "It was just spinning and it was on fire and it landed, so I’ve got a feeling it was part of the explosion that started it on fire and then landed over here.”

The Anoka County Sheriff's Office and other first responders arrived quickly, but there was little they could do.

"This is a horrible tragedy," said Cmdr. Sommer. "I can’t begin to describe what that scene looks like. I guess I can leave it at that.”

The preliminary investigation revealed the helicopter was a 1982 Fairchild Hiller FH-1100 and that it had been flying earlier that day without any issues.

Authorities are asking that if anyone finds debris from the wreckage to turn it into investigators.

As the FAA joins the investigation late Thursday night, many neighbors are relieved they narrowly missed such a tragedy and heartbroken they couldn't do more.

“Your first impression was to try to run out there and try to help," Chagleain said. "But the amount of fire that there was you didn’t feel like you could do much about it.”

Source:   http://www.kare11.com






Multiple people were killed in a helicopter crash in Lino Lakes, according to the Anoka County Sheriff's Office.

The area is near Sunset Avenue and Main Street. Emergency crews were called to the scene around 5:30 p.m.

"What the officers discovered, a helicopter crashed in the field," said Commander Paul Sommer, Anoka County Sheriff's Office. "There is basically wreckage. There's not a lot I can tell you about the crash scene. There's a large fireball, wreckage."

"Witnesses reported that they saw the helicopter. They heard a "pop" or a "bang" and that the rotor appeared to stop. The helicopter then just dropped out of the sky," said Sommer.

The Federal Aviation Administration is investigating the crash. It released the following statement:

The FAA and NTSB are investigating the crash of a helicopter today near Lino Lakes, MN. Local search and rescue will have more information about the scene and the people on board. Our investigations take several months or a year or more to complete. Updates will be posted on the NTSB.

"We don't know what kind of aircraft this was. We can't identify much based on what remains in the field. It's basically charred up debris," said Sommer.

Investigators say it is fortunate that the helicopter crashed in an open field.

"We're very close to dense residential neighborhoods nearby here," said Sommer.

The Anoka County Sheriff's Office is asking that if anyone finds debris from the helicopter to turn it into investigators.

There was a small landing strip about a mile away from the crash site.
Investigators don't know if the aircraft had taken off from the strip or if it was trying to land there.

"This is a horrible tragedy," said Sommer. "I can't begin to describe what that scene looks like."

Story and video:  http://kstp.com








Authorities reported “multiple fatalities” Thursday night in a helicopter crash in Lino Lakes, in the northeast metro.

The helicopter crashed in a field off Main Street and Sunset Avenue near some homes at about 5:30 p.m., prompting several calls to 911, said Anoka County sheriff’s Cmdr. Paul Sommer. He said there are “multiple fatalities” in an area of “significant wreckage.”

“There is not a lot I can tell you about the crash scene, but there’s a large fireball,” he said Thursday night at the scene. “We cannot identify much. It’s basically charred-up debris.”

Authorities could not immediately tell how many people are dead or what kind of helicopter it was, he said. No one on the ground was hurt.

Witnesses said they saw the helicopter flying, heard a pop, saw the rotary blade stop turning, then saw the helicopter drop from the sky.

Cmdr. Paul Sommer's news conference about the helicopter crash in Lino Lakes.
 Video (03:28): Anoka County Cmdr. Paul Sommer on crash: 'Large fireball, charred-up debris'
Smoke billowed in the area following the crash.

Authorities have asked residents to call Lino Lakes police at 763-427-1212 if they find any unusual objects in their yards that might be debris from the helicopter. Do not pick up or move the objects, they cautioned.

It was the second helicopter crash in the region in three weeks.

Last month, three people were injured when a North Medical Center helicopter went down on the east side of Lake Winona en route to the airport in Alexandria, Minn. There were no patients on board. That accident is still being investigated.

Story and video:   http://www.startribune.com

Grant County orchard workers file suit after they say they were "poisoned" by crop duster

YAKIMA COUNTY, Wash – A group of seven orchard workers filed a lawsuit in Yakima County Superior Court against Jones Produce and Ag Air Flying Service after they say they became sick after being exposed to pesticides.

Columbia Legal Services, out of Seattle, sent out a news release Wednesday saying the plaintiffs in the lawsuit were at Jones Produce working in 2014 when a crop duster with Ag Air Flying Service flew over to crop dust a potato field.

The pilot of the crop dusting plane allegedly allowed the pesticides to drift off-target to the nearby orchard where the seven plaintiffs were working. Columbia Legal Services said the workers were then poisoned by the pesticide, causing the workers to suffer “headaches, numbness and tingling in the face and lips, diarrhea, nausea and vomiting, dizziness, shortness of breath, and tightness in the chest.”

The suit is seeking damages, monetary compensation, for the workers’ injuries according to Columbia Legal Services.

"The pesticide laws are very clear," says Joe Morrison, a Columbia Legal Services attorney who represents the workers. "It is a violation to spray in a manner inconsistent with the label and the labels clearly state not to permit drift onto people.

Ag Air was cited by an administrative law judge in May 2016 according to Columbia Legal Services for violating pesticide application laws where they forced to pay a $440 penalty and put a pilot on suspension.

View the legal complaint here.

Source:   http://kimatv.com

Blast from the past as Eastern, National jets land at Pensacola International Airport



In a sight that hasn’t been seen in more than three decades, jets from both Eastern Airlines and National Airlines were on the tarmac at Pensacola International Airport on Thursday.

Flights from both airlines landed in Pensacola after being diverted due to Hurricane Matthew, which is currently bearing down on Florida’s Atlantic coast.

For more than four decades spanning the late 1930s through 1980, Eastern and National were the only two air carriers at Pensacola International Airport, then known as Hagler Field and later Pensacola Regional. Longtime players both in the U.S. commercial airline industry, both airlines went defunct years ago, but their names have been revived in recent years by upstart airlines hoping to capitalize on a sense of nostalgia.

“It’s good to see these aircraft here again, even if it is only temporary because of the storm,” said airport director Dan Flynn. “Having both Eastern and National here at the same time is like the 1970’s again!”

National Airlines was one of the first carriers to provide commercial air service to and from Pensacola, launching flights to Mobile, Ala. and Jacksonville, Fla. on November 1, 1938. The airline operated out of Pensacola for more than 40 years until merging with Pan American Airlines in 1980. Eastern came in 1947, and continued to serve Pensacola until the airline ran out of money and went belly up in 1991.

Read more here:   http://pulsegulfcoast.com

Auburn University Regional Airport hosts more than 60 aircraft from Florida



Hoping to avoid damage from Hurricane Matthew, one aeronautical university in Florida decided to fly more than 60 of its planes to Auburn University Regional Airport this week. Meanwhile, officials report that local hotels are filling up fast from those who evacuated ahead of the hurricane's anticipated path up the East Coast.

Since Wednesday night, Auburn University Aviation has been offering assistance to the students and flight instructors from Embry Riddle Aeronautical University’s Daytona Beach campus.

Bill Hutto, airport and aviation center director, said the Florida university brought in 15 of its planes Wednesday night and 45 Thursday morning.

The staff at the airport and aviation center helped the university with finding hotel rooms. “We’re glad to help,” Hutto said.

Auburn University also is offering tours of the Wellness Center and other areas on campus to the Florida group.

Hutto said the Florida university is one of Auburn's peer institutions.

“We lend a helping hand,” Hutto said.

James Roddey, director of communications at Embry Riddle Aeronautical University’s Daytona Beach campus, said their original plan was to have some planes in the hangar at Daytona International Airport and fly some twin-engine planes away from the campus, but decided against it.

“We changed the plan and wanted to be as safe as possible,” Roddey said.

The campus has 150 flight instructors and 1,200 to 1,500 flight students, according to Roddey. It conducts 275 flights a day.

Roddey expressed his appreciation to Auburn University’s airport and aviation center.

“The airport was generous to us,” Roddey said. “Pilots are a very close-knit community. We have made a lot of good friends.”

Roddey said they hope to head back to Florida on Saturday.

As Florida along with Georgia and South Carolina brace for Hurricane Matthew, Alabama should remain out of its path, according to Jim Stefkovich, meteorologist in charge at NOAA (National Oceanic and Atmospheric Administration)’s Birmingham office.

“Most of East Alabama is in a severe to extreme drought,” Stefkovich said. "There is not a chance of rain until next Wednesday.”

Rita Smith, public information officer for the Lee County Emergency Management Agency, said it is closely monitoring the hurricane in case anything changes.

“It looks like we are out of the path,” Smith said. "Our citizen safety is the most important thing.”

Smith recommended that residents monitor the hurricane’s path as well through their NOAA radios and local media.

People coming to the Auburn-Opelika area to avoid the hurricane were filling up the hotels Thursday.

Barbara Patton, president of the Opelika Chamber of Commerce, said the city’s hotels were full by late afternoon Thursday.

Gov. Robert Bentley, at a public appearance in Alexander City, said officials are in contact with the states that will be affected by Hurricane Matthew.

“We will be giving any help that they need,” Bentley said. “We have compacts with other states to provide either National Guardsmen or any other thing that they need. Certainly our power companies work together with the other states, so we stand ready to help them just like they did when we had the April 27 tornadoes.”

Source:   http://www.oanow.com
