Thursday, July 07, 2016

Piper PA-44-180 Seminole, Plane Nonsense Inc., N190ND: Accident occurred July 07, 2016 at Dillant-Hopkins Airport (KEEN), Keene, Cheshire County, New Hampshire




Additional Participating Entity:
Federal Aviation Administration / Flight Standards District Office;  Portland, Maine

Aviation Accident Final Report -  National Transportation Safety Board: https://app.ntsb.gov/pdf

Docket And Docket Items - National Transportation Safety Board:   https://dms.ntsb.gov/pubdms

Aviation Accident Data Summary - National Transportation Safety Board: https://app.ntsb.gov/pdf

Plane Nonsense Inc: http://registry.faa.gov/N190ND

NTSB Identification: GAA16CA377
14 CFR Part 91: General Aviation
Accident occurred Thursday, July 07, 2016 in Keene, NH
Probable Cause Approval Date: 04/04/2017
Aircraft: PIPER PA 44, registration: N190ND
Injuries: 2 Uninjured.

NTSB investigators used data provided by various entities, including, but not limited to, the Federal Aviation Administration and/or the operator and did not travel in support of this investigation to prepare this aircraft accident report.

The flight instructor in the multiengine airplane reported that, during a simulated single-engine instrument approach to runway 2, the right engine was configured for the simulated failure. The instructor added that the goal was to perform a missed approach on one engine and note the airplane’s performance. The pilot under instruction descended to the decision height and executed the missed approach procedure, but the airplane would not climb. The flight instructor told the pilot to go to full power on both engines. According to the flight instructor, “mixtures, props and throttles were all full forward and the fuel flow levers were both at the ON position,” and he took control of the airplane.

The flight instructor reported that there were trees and buildings to the north and that he made a left turn about 400 ft above ground level with the intent to land on runway 14. He extended the landing gear but realized that he would not reach the runway. He executed a forced landing to the southwest on taxiway Sierra, the airplane crossed over runway 32/14, and although heavy braking was applied, the airplane exited the taxiway and impacted a drainage culvert. The airplane sustained substantial damage to the aft fuselage stringers and longerons.

The airport elevation was 488 ft, the density altitude was 2,120 ft, the temperature was 81°, the dew point was 66° F, and the wind was calm, and the flight instructor stated that carburetor heat was not used during the approach on either engine.

The relative humidity was about 60 percent, and the weather conditions were conducive to serious icing probability when operating in a gliding flight profile.

The National Transportation Safety Board determines the probable cause(s) of this accident as follows:
The flight instructor’s failure to use carburetor heat during the approach while operating in atmospheric conditions that were conducive to carburetor icing, which resulted in a loss of engine power due to carburetor icing.

Per the AOPA Carburetor Ice Probability Chart, the relative humidity was about 60 percent and there was serious icing probability when operating in a gliding flight profile.

NTSB Identification: GAA16CA377
14 CFR Part 91: General Aviation
Accident occurred Thursday, July 07, 2016 in Keene, NH
Aircraft: PIPER PA 44, registration: N190ND
Injuries: 2 Uninjured.

NTSB investigators used data provided by various entities, including, but not limited to, the Federal Aviation Administration and/or the operator and did not travel in support of this investigation to prepare this aircraft accident report.

The flight instructor in the multi-engine airplane reported that during a simulated single-engine instrument approach to runway 2, the right engine was configured for the simulated failure. The instructor reported that the goal was to perform a missed approach on one engine and note the airplane's performance. The pilot under instruction descended to the decision height and executed the missed approach procedure, but the airplane would not climb. The flight instructor told the pilot to go to full power on both engines. "Mixtures, props and throttles were all full forward and the fuel flow levers were both at the ON position," according to the flight instructor, and he took control of the airplane.

The flight instructor reported that there were trees and buildings to the north and he made a left turn about 400 feet above ground level with the intent to land on runway 14. He extended the landing gear; but realized that he would not make the runway. He executed a forced landing to the southwest on taxiway Sierra, the airplane crossed over runway 32-14, and although heavy braking was applied, the airplane exited the taxiway and impacted a drainage culvert. The airplane sustained substantial damage to the aft fuselage stringers and longerons.

The airport elevation was 488 feet, the density altitude was 2,120 feet, the temperature was 81° and the dew point was 66° F, the wind was calm, and the flight instructor stated that carburetor heat was not used during the approach on either engine.

Per the AOPA Carburetor Ice Probability Chart, the relative humidity was about 60 percent and there was serious icing probability when operating in a gliding flight profile.


NORTH SWANZEY — A pilot experienced a landing gear problem with his small plane Thursday, which caused the plane to come down in a ditch at Dillant-Hopkins Airport.

The plane, a Piper PA 44, was attempting to land on runway 14-32 at 11:55 a.m. Neither the pilot nor the passenger was injured. The National Transportation Safety Board (NTSB) is investigating.

Fire trucks, ambulances, and rescue vehicles were parked around the plane after it landed.

The incident marks the third at the Keene-owned airport in North Swanzey since May 1.

A single-engine aircraft went off the west side of the main runway after making its descent on May 1. Approaching from the south in the late afternoon, the plane was carrying two passengers. Damage was limited to five lights along the runway strip.

On May 11, a Vans RV-8 aircraft went off the side of Runway 2 and flipped, after hitting a deer as it attempted to land. Both the pilot and a passenger got out of the plane on their own; neither was injured; the deer was killed. The NTSB is looking into that mishap, too.

The airport that sits on 888 acres and has just two runways. Airport Manager John G. “Jack” Wozmak chalked the string of incidents up to fate.

“Planes are in and out a lot; we get a lot of visitors,” he said. “Chances increase with traffic.”

A municipal airport that serves corporate and hobbyist planes as opposed to commercial use, Dillant-Hopkins still has the second largest runway in the state, at 6,200 feet, second only to the Manchester-Boston Airport, which has a runway of 9,250 feet, according to the Manchester-Boston Airport website.

The Federal Aviation Administration and industry are working on a number of key initiatives to improve general aviation safety, according to a news release from the governing body. Together, the release noted, it will use data to identify risk, pinpoint trends through root cause analysis, and develop safety strategies.

Tracy Keating, who owns a new restaurant at the terminal, The Flight Deck, was at work during each of the incidents, although she didn’t witness them, she said.

“We live in a technical world and sometimes technology is amazing and sometimes it’s not,” she said.

Keating said for a tiny airport, she was impressed with how quickly workers responded to each instance.

“There were three in the last two months so you know anything they may have not known how to do, they do now,” she said.

“It’s all just coincidence though.”

Cessna 172S Skyhawk, Christiansen Aviation Inc., N872SP; incident occurred on Fourth of July over Eagle Mountain Lake, Tarrant County, Texas -Kathryn's Report

CHRISTIANSEN AVIATION INC: http://registry.faa.gov/N872SP














EAGLE MOUNTAIN LAKE, Texas (NBC News) The FAA is investigating after several people captured video of a small airplane flying low over a Fort Worth-area lake on the Fourth of July.

Witnesses said it appeared as if the plane was dive-bombing boats.

“I thought he was gonna hit us,” said Adam Pick, who had taken his family to the lake.

Fun on the water turned to fear.

The video, captured by someone on the shore, shows a plane buzzing the Pick’s boat, their two daughters on a tube behind, one of them even screams.

“We’re like really scared,” said Pick. “We’re like, ‘there’s a plane coming at us.'” He had called for help, worried the pilot was having trouble.

“At first when I was on with 911, I said, ‘there’s a plane, it’s in danger.’ then you realize he’s not in danger, he’s having fun and that’s when you go from caring to mad.”

And he wasn’t alone. Several people captured video of the plane making numerous passes over the lake.

“And there was people running, as he was coming by people were running off their docks.”

At times the pilot, flying so low the Picks say you could see the expressions on the faces of people in the plane.

“They came over the boat and we just saw them like pointing at us and laughing at us and we were like, ‘why are those people doing this,'” said Avery Pick.

“I thought I was going to see somebody die that day or we were gonna die.”

The Picks say it put an end to their time on the water.

“We were off the lake after that.”

“We didn’t go back out, we were done. And you’re afraid, is he gonna come back? Is he gonna do this again?”

There are several regulations that could be at play here – one of them having to do with reckless operation of an aircraft.

The plane’s owner says he leases it to a company that does traffic monitoring in North Texas – that company didn’t want to comment citing the ongoing investigation.

Story and video:  http://kxan.com

§ 91.13 Careless or reckless operation

(a) Aircraft operations for the purpose of air navigation. No person may operate an aircraft in a careless or reckless manner so as to endanger the life or property of another.

(b) Aircraft operations other than for the purpose of air navigation. No person may operate an aircraft, other than for the purpose of air navigation, on any part of the surface of an airport used by aircraft for air commerce (including areas used by those aircraft for receiving or discharging persons or cargo), in a careless or reckless manner so as to endanger the life or property of another.

And, regulations requiring minimum altitudes could also apply. (See below)

§ 91.119 Minimum safe altitudes: General

Except when necessary for takeoff or landing, no person may operate an aircraft below the following altitudes:

(a) Anywhere. An altitude allowing, if a power unit fails, an emergency landing without undue hazard to persons or property on the surface.

(b) Over congested areas. Over any congested area of a city, town, or settlement, or over any open air assembly of persons, an altitude of 1,000 feet above the highest obstacle within a horizontal radius of 2,000 feet of the aircraft.

(c) Over other than congested areas. An altitude of 500 feet above the surface, except over open water or sparsely populated areas. In those cases, the aircraft may not be operated closer than 500 feet to any person, vessel, vehicle, or structure.

Cirrus SR-22, Cirrus Design Corporation, N7YT; accident occurred January 25, 2015 in Hilo, Hawaii -Kathryn's Report

‘Seafarer of the Year’ Awarded to Crew for Maui Coast Rescue

Crew members of the ms Veendam after rescuing a pilot off the coast of Maui back in 2015.
Photo Courtesy: Holland America Line


The captain and crew of Holland America Line’s ms Veendam were named “Seafarer of the Year” at this year’s Lloyd’s List North American Maritime Awards, for the rescue of a pilot who ejected from his aircraft 225 miles off the coast of Maui.


The cruise line received the award at a ceremony in New York in May.


The “Seafarer of the Year” award recognizes the skills, bravery and professionalism that seafarers demonstrate daily.


On Jan. 25, 2015, Veendam rescued a pilot 225 miles off the coast of Maui who had ditched his single-engine aircraft after running out of fuel. The plane had a parachute system and the pilot was able to safely escape into a life-raft where he was retrieved by the cruise ship.


“Holland America Line employees consistently strive for professional and personal excellence, and to be honored for saving a life is both humbling and rewarding,” said Orlando Ashford, Holland America Line’s president. “On behalf of Veendam’s captain and crew, thank you to Lloyd’s List for bestowing the honor of ‘Seafarer of the Year,’ a recognition we greatly appreciate.”


“The officers and crew performed exceptionally well and made a dramatic rescue—I am very proud of the Veendam team,” added Keith Taylor, executive vice president, fleet operations, Holland America Group, and retired Rear Admiral, U.S. Coast Guard. “This rescue is a great reminder of the commitment all of us at Holland America Line, our sister brands and the cruise industry have in supporting rescue efforts at sea when we are near.”


Lloyd’s List called Veendam’s award one of the “stand-out moments of the gala dinner.”


“Whenever the crew of a vessel is actively involved in a rescue it shows the capabilities and the humanity of the profession,” said Sander Wielemaker, Atlantic area manager DNV GL, sponsors of the award. “The master and crew, through coordination with the authorities, were able to save the life of the individual and no doubt add a moment of out-of-the-ordinary excitement for the passengers of the cruise ship.”


Holland America Line participates in rescues at sea whenever called upon. Two other vessels of Holland America made similar rescues last year, ms Zuiderdam rescued eight crewmembers from a sinking vessel in the Caribbean and the cruise lines ms Zaandam came to the aid of seven stranded crewmembers at the Arctowski Polish research station at King George Island in Antarctica.


Holland America offers more than 500 cruises to more than 400 ports in 98 countries around the world. The cruises also visit all seven continents, including Antarctica.


Original article can be found here:  http://mauinow.com


http://registry.faa.gov/N7YT

FAA Flight Standards District Office: FAA Honolulu FSDO-13

NTSB Identification: WPR15LA089
14 CFR Part 91: General Aviation
Accident occurred Sunday, January 25, 2015 in Maui, HI
Probable Cause Approval Date: 07/13/2015
Aircraft: CIRRUS SR22 - NO SERIES, registration: N7YT
Injuries: 1 Uninjured.

NTSB investigators may not have traveled in support of this investigation and used data provided by various sources to prepare this aircraft accident report.

The pilot reported that, during the transpacific flight, he was unable to transfer fuel from the aft auxiliary fuel tank to the main fuel tanks. Despite multiple attempts to troubleshoot the fuel system issue, he was unable to correct the situation. After transferring fuel from the forward auxiliary fuel tank to both main fuel tanks, he estimated that there was only enough fuel in the main tanks to reach within about 200 miles of land, so he decided to divert to a nearby cruise ship. Once the airplane was in the immediate vicinity of the cruise ship, the pilot activated the airplane’s parachute system, the parachute deployed, and the airplane descended under the canopy into the ocean. The pilot immediately exited the airplane and inflated an emergency life raft; he was recovered from the water a short time later. The airplane subsequently became submerged in the water and was not recovered. The reason for the pilot’s inability to transfer fuel from the aft auxiliary fuel tank to the main fuel tanks could not be determined.

The National Transportation Safety Board determines the probable cause(s) of this accident as follows:
The pilot’s inability to transfer fuel from the aft auxiliary fuel tank to the main fuel tanks for reasons that could not be determined because the airplane was ditched and not recovered.

On January 25, 2015, about 1644 Hawaiian standard time, a Cirrus Design Corporation SR22, N7YT, ditched into the waters of the Pacific Ocean about 230 miles east of Maui, Hawaii. The airplane was registered to Cirrus Design Corporation, Duluth, Minnesota, and operated by The Flight Academy, Kirkland, Washington, under the provisions of Title 14 Code of Federal Regulations Part 91. The commercial pilot, sole occupant of the airplane, was not injured. Visual meteorological conditions prevailed and an instrument flight rules flight plan was filed for the repositioning flight. The cross-country flight originated from Tracy, California, about 0530, with an intended destination of Maui.

In a written statement to the National Transportation Safety Board (NTSB) investigator-in-charge, the pilot reported that the flight was uneventful, and a previous fuel transfer from the front and aft auxiliary fuel tanks was successful as the flight was about 200 miles offshore. However, as the flight passed the BILLO intersection, the pilot opened the valves to transfer fuel from the aft auxiliary fuel tank to the right wing fuel tank and did not observe any fuel flow. Upon verifying that the pressure line was open, he closed the valve to the aft tank and opened the valve for the forward auxiliary fuel tank, and observed that fuel immediately began flowing to the right wing fuel tank.

The pilot further stated that as he was well past the half-way point to Hawaii, he performed various maneuvers in an attempt to get fuel to flow from the aft auxiliary fuel tank to either the left or right main wing fuel tanks with no success. The pilot utilized a satellite phone and obtained further troubleshooting assistance from company personnel. After transferring fuel from the forward auxiliary fuel tank to both left and right wing fuel tanks, he estimated that he had about enough fuel onboard to be about 200 miles short of Hawaii.

The pilot stated that numerous attempts to transfer fuel from the aft auxiliary fuel tank to the main fuel tanks were unsuccessful, and siphoning fuel from the aft auxiliary to the forward auxiliary fuel tank was partially successful, however, eventually fuel would not transfer into either wing fuel tank.

While in contact with the United States Coast Guard, the pilot made the decision that he would eventually have to deploy the Cirrus Airframe Parachute System (CAPS). The pilot was informed of a cruise ship near his location, and subsequently diverted towards that location. He further reported that once he was in the immediate vicinity of the cruise ship, he activated the CAPS and the parachute deployed. The airplane descended under the canopy into the waters of the Pacific Ocean. The pilot stated that he immediately exited the airplane and inflated an emergency life raft; he was extracted from the water a short time later.

The airplane became submerged within the water shortly thereafter. At the time of this report, there is no intention of recovering the wreckage.

Gulfstream American Corp AA-5A, N26908: Accident occurred July 07, 2016 near Cheyenne Regional Airport (KCYS), Laramie County, Wyoming

Aviation Accident Final Report - National Transportation Safety Board: https://app.ntsb.gov/pdf

The National Transportation Safety Board did not travel to the scene of this accident.

Additional Participating Entity:

Federal Aviation Administration / Flight Standards District Office; Denver, Colorado

Aviation Accident Factual Report  -  National Transportation Safety Board:  https://app.ntsb.gov/pdf


Investigation Docket  -  National Transportation Safety Board: https://dms.ntsb.gov/pubdms


http://registry.faa.gov/N26908

NTSB Identification: CEN16LA256
14 CFR Part 91: General Aviation
Accident occurred Thursday, July 07, 2016 in Cheyenne, WY
Probable Cause Approval Date: 06/20/2017
Aircraft: GULFSTREAM AMERICAN CORP AA 5, registration: N26908
Injuries: 2 Uninjured.

NTSB investigators may not have traveled in support of this investigation and used data provided by various sources to prepare this aircraft accident report.

The flight instructor and student pilot were departing on an instructional cross-country flight when, just after takeoff, the airplane encountered wind and turbulence. The instructor had difficulty maintaining altitude and elected to perform an off-airport precautionary landing, during which the right wing sustained substantial damage. A weather study revealed conditions conducive to low-level wind shear and turbulence at the accident site at the time of the accident. Although the instructor had received an abbreviated weather briefing before departure, the briefing did not advise of the potential for low-level wind shear. It is likely that the encounter with wind shear during departure made it difficult for the airplane to maintain altitude.

The National Transportation Safety Board determines the probable cause(s) of this accident as follows:
The airplane’s encounter with low-level wind shear during takeoff, which resulted in an off-airport landing.

On July 7, 2016, about 1155 mountain daylight time, a Gulfstream American CORP AA-5A airplane, N26908, was substantially damaged during a forced landing after departing Cheyenne Regional Airport/Jerry Olson Field (KCYS), Cheyenne, Wyoming. The flight instructor and student pilot were not injured. The instructional flight was conducted under the provisions of 14 Code of Federal Regulations Part 91. Visual meteorological conditions prevailed and a visual flight rules flight plan had been filed for the flight. The flight was originating at the time of the accident and was en route to Eppley Airfield (KOMA), Omaha, Nebraska.

The flight instructor stated that the takeoff was normal; however, at the departure end of the runway, between 300 and 400 feet above the ground, "the wind started blowing from all directions" and he had difficulty maintaining control of the airplane. The flight instructor had difficulty maintaining altitude and elected to land the airplane on the road next to a school. During the landing roll, the flight instructor maneuvered the airplane to avoid hitting construction workers directly ahead of him. The right wing hit a construction sign and was substantially damaged. The pilot stated that there were no mechanical anomalies with the airplane or engine at the time of the accident.

A weather study was conducted by a meteorologist with the National Transportation Safety Board. The National Weather Service charts depicted a low pressure system over southeast Wyoming and a mid-level trough just west of the accident site. Winds at the 700-hPa level were westerly around 10 knots, whereas winds at the 500-hPa level increased to 60 knots. There were no AIRMETs, SIGMETs, or center weather advisories valid for the accident site at the time of the accident. One PIREP in the area reported moderate "chop" between 6,500 feet and 8,500 feet mean sea level. The terminal aerodrome forecast valid at the time of the accident forecast winds from 300° at 12 knots gusting to 20 knots.

Cheyenne Regional Airport had the closest official weather station to the accident site, 2 miles south-southeast of the accident location. The observation taken at 1153 reported wind 090° at 9 knots, and clear skies. The observation taken at 1208, after the accident, reported wind from 090° at 7 knots. The closest non-official surface observation site (5 miles west of the accident site) reported wind from 274° with gusts to 19 knots at 1215. Weather service radar depicted a dry-line boundary at the accident site, at the time of the accident. Wind speed and direction changed with altitude associated with this dry-line boundary and would have had a corresponding increase in low-level turbulence and low-level wind shear.

A search of official weather briefing sources revealed that the flight instructor contacted Lockheed Martin Flight Service at 0853 on the morning of the accident and received an abbreviated briefing for the flight from Rock Springs, Wyoming, to Cheyenne, Wyoming. There was no record of the flight instructor receiving or retrieving any additional weather information before the accident flight.





NTSB Identification: CEN16LA256
14 CFR Part 91: General Aviation
Accident occurred Thursday, July 07, 2016 in Cheyenne, WY
Aircraft: GULFSTREAM AMERICAN CORP AA 5A, registration: N26908
Injuries: 2 Uninjured.

This is preliminary information, subject to change, and may contain errors. Any errors in this report will be corrected when the final report has been completed. NTSB investigators may not have traveled in support of this investigation and used data provided by various sources to prepare this aircraft accident report.

On July 7, 2016, about 1200 mountain daylight time, a Gulfstream American CORP AA-5A airplane, N26908, was substantially damaged during a forced landing after departing Cheyenne Regional Airport/Jerry Olson Field (KCYS), Cheyenne, Wyoming. The flight instructor and student pilot were not injured. The instructional flight was conducted under the provisions of 14 Code of Federal Regulations Part 91. Visual meteorological conditions prevailed and it is unknown if a Federal Aviation Administration (FAA) flight plan had been filed for the flight. The flight was originating at the time of the accident and was en route to Eppley Airfield (KOMA), Omaha, Nebraska.

The flight instructor reported that after takeoff the airplane encountered very windy conditions and he was unable to control the airplane. The airplane was unable to climb out and the flight instructor performed a forced landing to a road. The pilot maneuvered the airplane to avoid a collision with a construction crew on the road. The right wing was substantially damaged when it impacted a construction sign.

Air Tractor AT-602, N967JB, registered to and operated by Bootheel Air Services LLC: Fatal accident occurred July 07, 2016 in Kennett, Dunklin County, Missouri

Jack William Short
July 06, 1968 - July 07, 2016
Jack Short was the owner and operator of Bootheel Ag Air Services LLC.



The National Transportation Safety Board did not travel to the scene of this accident.

Additional Participating Entity:
Federal Aviation Administration / Flight Standards District Office; St. Ann, Missouri

Aviation Accident Factual Report - National Transportation Safety Board: https://app.ntsb.gov/pdf

Investigation Docket - National Transportation Safety Board: https://dms.ntsb.gov/pubdms


Bootheel Ag Air Services LLC: http://registry.faa.gov/N967JB

Location: Kennett, MO
Accident Number: CEN16LA260
Date & Time: 07/07/2016, 0650 CDT
Registration: N967JB
Aircraft: AIR TRACTOR INC AT-602
Aircraft Damage: Destroyed
Defining Event: Loss of control in flight
Injuries: 1 Fatal
Flight Conducted Under: Part 137: Agricultural

On July 7, 2016, at 0650 central daylight time, an Air Tractor Inc AT-602, N967JB, collided with power lines and terrain during an aerial application of a field about 4 miles northeast of Kennett, Missouri. The airplane was destroyed by impact forces. The commercial pilot sustained fatal injuries. The airplane was registered to and operated by Bootheel Air Services LLC under 14 Code of Federal Regulations Part 137 as an aerial application flight that was not operating on a flight plan. Visual meteorological conditions prevailed at the time of the accident. The local flight last departed from Hornersville Memorial Airport (37M), Hornersville, Missouri, about 0541.

According to a Federal Aviation Administration (FAA) inspector, a chemical loader stated that the airplane was loaded at 37M with 375 gallons of liquid chemical applicant to spray a 75-acre corn crop field, which was adjacent to a bean field. There were no witnesses to the accident.

The accident site was located near electrical lines that were oriented in an east/west direction and in the middle of the corn field that was being sprayed by the airplane. Two of the electrical lines were severed and a third damaged near the east edge of the field. A section of the airplane spray boom was bent around and hanging from the damaged, third electrical line. There was a ground scar consistent with the airplane's impact with terrain approximately 1,000 feet from the severed/damaged electrical line and in the bean field adjacent to the corn field. Approximately 50 feet from the severed/damaged lines, there were sections of right wing and aileron on the ground. The ground scar extended in the bean field and inn a northerly direction for approximately 200 feet. There were several propeller strikes in the ground near the beginning of the wreckage path.

The propeller blades, propeller hub, engine, and landing gear were found separated from the airplane. The fuselage, remaining wing, and empennage were located near the end of the wreckage path. The cockpit and tail section had an approximate tail-to-nose heading oriented towards the south.

Examination of the flight control confirmed flight control continuity. The engine turbine blades display signatures consistent with engine power. Fuel quantity could not be verified, but a fuel spill was noted underneath the wing section. There was no evidence of remaining spray chemical solution on scene. The shoulder harness air bag restraint system was deployed.

The 48-year-old pilot had reported multiple orthopedic surgeries and use of medication for high cholesterol to the FAA. At the time of his last aviation medical examination, diabetes was diagnosed and treatment with metformin initiated. The aviation medical examiner questioned records from a recent hospitalization that stated the pilot had anxiety/depression but was told this was not a current diagnosis and that he had not been on medication in years. According to the autopsy performed by Mineral Area Pathology LLC, the cause of death was multiple blunt force injuries and the manner of death was accident. No significant natural disease was identified. Toxicology testing identified acetaminophen, chlorpheniramine, citalopram and its metabolite n-desmethylcitalopram, dextromethorphan and its metabolite dextrorphan in liver. Acetaminophen and chlorpheniramine were found in cavity blood and the rest were found in muscle. Acetaminophen was identified in urine.

Acetaminophen is an analgesic and fever reducer available over the counter in many products; it is commonly marketed as Tylenol. Chlorpheniramine is a sedating antihistamine available over the counter in many cold, cough, and allergy preparations. It carries this warning, "May impair mental and/or physical ability required for the performance of potentially hazardous tasks (e.g., driving, operating heavy machinery)."

Citalopram is a prescription antidepressant medication often marketed with the name Celexa. It carries this warning, "In studies in normal volunteers, citalopram in doses of 40 mg/day did not produce impairment of intellectual function or psychomotor performance. Because any psychoactive drug may impair judgment, thinking, or motor skills, however, patients should be cautioned about operating hazardous machinery, including automobiles, until they are reasonably certain that citalopram therapy does not affect their ability to engage in such activities." N-desmethylcitalopram is its primary metabolite.

Major depression itself is associated with significant cognitive degradation, particularly in executive functioning. The cognitive impairment often resolves as the emotional symptoms resolve. The FAA requires that pilots treated for depression undergo specific testing to ensure their cognitive functioning is intact and they are using a non-impairing antidepressant. The FAA's Guide for Aviation Medical Examiners states "The use of a psychotropic drug is disqualifying for aeromedical certification purposes – this includes all antidepressant drugs, including selective serotonin reuptake inhibitors (SSRIs). However, the FAA has determined that airmen requesting first, second, or third class medical certificates while being treated with one of four specific SSRIs may be considered. The Authorization decision is made on a case by case basis. The Examiner may not issue." The four potentially allowable antidepressants are fluoxetine (Prozac), escitalopram (Lexapro), sertraline (Zoloft), and citalopram (Celexa).

Dextromethorphan is a cough suppressant available over the counter in many products. At usual dosing, it is not considered impairing. Dextrorphan is its primary metabolite.



Pilot Information

Certificate: Commercial
Age: 48, Male
Airplane Rating(s): Single-engine Land
Seat Occupied: Center
Other Aircraft Rating(s): None
Restraint Used: 4-point
Instrument Rating(s): None
Second Pilot Present: No
Instructor Rating(s): None
Toxicology Performed: Yes
Medical Certification: Class 2 With Waivers/Limitations
Last FAA Medical Exam: 12/01/2015
Occupational Pilot: Yes
Last Flight Review or Equivalent:  11/18/2014
Flight Time:  3982.1 hours (Total, all aircraft), 2.7 hours (Total, this make and model), 3982.1 hours (Pilot In Command, all aircraft), 0 hours (Last 90 days, all aircraft), 0 hours (Last 30 days, all aircraft)

Aircraft and Owner/Operator Information

Aircraft Manufacturer: AIR TRACTOR INC
Registration: N967JB
Model/Series: AT-602
Aircraft Category: Airplane
Year of Manufacture: 2014
Amateur Built: No
Airworthiness Certificate: Restricted
Serial Number: 602-1243
Landing Gear Type: Tailwheel
Seats: 1
Date/Type of Last Inspection: 12/07/2015, Annual
Certified Max Gross Wt.: 12500 lbs
Time Since Last Inspection:
Engines: 1 Turbo Prop
Airframe Total Time: 1025.6 Hours at time of accident
Engine Manufacturer: Pratt & Whitney
ELT: Installed, not activated
Engine Model/Series: PT6A-60AG
Registered Owner: BOOTHEEL AG AIR SERVICES LLC
Rated Power: 1050 hp
Operator: BOOTHEEL AG AIR SERVICES LLC
Operating Certificate(s) Held: Agricultural Aircraft (137)
Operator Does Business As: BOOTHEEL AG AIR
Operator Designator Code: ZHUG

Meteorological Information and Flight Plan

Conditions at Accident Site: Visual Conditions
Condition of Light: Day
Observation Facility, Elevation: TKX, 262 ft msl
Observation Time: 0655 CDT
Distance from Accident Site: 5 Nautical Miles
Direction from Accident Site: 45°
Lowest Cloud Condition: Clear / 15000 ft agl
Temperature/Dew Point: 27°C / 24°C
Lowest Ceiling: None
Visibility: 10 Miles
Wind Speed/Gusts, Direction: 10 knots, 210°
Visibility (RVR):
Altimeter Setting: 29.91 inches Hg
Visibility (RVV):
Precipitation and Obscuration: No Obscuration; No Precipitation
Departure Point: Hornersville, MO (37M)
Type of Flight Plan Filed: None
Destination: Hornersville, MO (37M)
Type of Clearance: None
Departure Time: 0541 CDT
Type of Airspace:

Wreckage and Impact Information

Crew Injuries: 1 Fatal
Aircraft Damage: Destroyed
Passenger Injuries: N/A
Aircraft Fire:  None
Ground Injuries: N/A
Aircraft Explosion: None
Total Injuries: 1 Fatal
Latitude, Longitude:  36.290000, 89.986389 (est)



NTSB Identification: CEN16LA260
14 CFR Part 137: Agricultural
Accident occurred Thursday, July 07, 2016 in Kennett, MO
Aircraft: AIR TRACTOR INC AT-602, registration: N967JB
Injuries: 1 Fatal.

This is preliminary information, subject to change, and may contain errors. Any errors in this report will be corrected when the final report has been completed. NTSB investigators may not have traveled in support of this investigation and used data provided by various sources to prepare this aircraft accident report.

On July 7, 2016, at 0650 central daylight time, an Air Tractor Inc AT-602, N967JB, collided with power lines and terrain during an aerial application of a field about 4 miles northeast of Kennett, Missouri. The airplane was destroyed by impact forces. The commercial pilot sustained fatal injuries. The airplane was registered to and operated by Bootheel Air Services LLC under 14 Code of Federal Regulations Part 137 as an aerial application flight that was not operating on a flight plan. Visual meteorological conditions prevailed at the time of the accident. The local flight last departed from Kennett, Missouri at time unknown.



DUNKLIN COUNTY, MO (KFVS) -

Authorities have identified a man who was killed Thursday morning in a plane crash in Dunklin County, Mo.

At approximately 6:55 a.m., the Dunklin County Sheriffs' Office was notified of a plane crash that took place near County Road 426 just east of Hwy. EE, outside of Kennett.

Deputies and the sheriff responded to the scene and found a crop dusting plane had indeed crash landed. They also learned that the pilot, Jack Short, 48, of Kennett, was killed in the accident.

The Federal Aviation Administration was notified and said they would be on scene at approximately 12:30 p.m.

The FAA arrived as mentioned and conducted their investigation of the incident.

According to Dunklin County Sheriff Bob Holder, the crop duster hit power lines and went down.

Deputies with the Pemiscot County Sheriff's Department, the Missouri State Highway and the Kennett Fire Department also assisted.

An autopsy has been set for Friday, July 8.

Story and video: http://www.wbtv.com



A crop duster pilot died after his plane apparently struck a power line and crashed Thursday morning, according to Dunklin County Sheriff Bob Holder.

The victim was identified as Jack Short, 48, of Kennett.

The crash happened at around 6 a.m. in a field off County Road 426, Sheriff Holder added. Short was pronounced dead at the scene. Holder says a cause of the crash has not yet been determined.

The Federal Aviation Administration has been notified of the crash, and is expected to be on the scene later today.

Original article can be found here: http://www.dddnews.com

Bell 525 Relentless, Bell Helicopters Textron Inc., N525TA: Fatal accident occurred July 06, 2016 in Italy, Ellis County, Texas

Erik Boyce
 Majs. Erik Boyce and Jason Grogan died in the July 6, 2016 crash, according to officials at Marine Corps Forces Reserve. Both men flew AH-1W Super Cobras in the Marine Corps. Boyce deployed in support of operations in Iraq five times. Grogan deployed in support of Iraq operations twice and to Afghanistan once. On July 6, 2016 they were flying a Bell 525 Relentless helicopter, which went down south of Dallas in Ellis County, Texas.

Bell Helicopter pilot Jason Grogan in an undated family photo stands in front of a Bell 47G helicopter. Grogan was one of two Bell test pilots killed on July 6, 2016, when a Bell 525 crashed in southern Ellis County, Texas.



The National Transportation Safety Board traveled to the scene of this accident.

Additional Participating Entities:
General Electric Aviation; Lynn, Massachusetts
Bell Helicopter; Arlington, Texas
Federal Aviation Administration; Washington, District of Columbia

Aviation Accident Final Report - National Transportation Safety Board: https://app.ntsb.gov/pdf

Investigation Docket - National Transportation Safety Board: https://dms.ntsb.gov/pubdms

Aviation Accident Data Summary - National Transportation Safety Board: https://app.ntsb.gov/pdf

Bell Helicopters Textron Inc: http://registry.faa.gov/N525TA

Location: Italy, TX
Accident Number: DCA16FA199
Date & Time: 07/06/2016, 1148 CDT
Registration: N525TA
Aircraft: BELL 525
Aircraft Damage: Destroyed
Defining Event: Aircraft structural failure
Injuries: 2 Fatal
Flight Conducted Under: Part 91: General Aviation - Flight Test

Analysis

The experimental research and development helicopter was undergoing developmental flight tests before type certification. On the day of the accident, the helicopter test crew was performing a series of one-engine-inoperative (OEI) tests at increasing airspeeds with a heavy, forward center-of-gravity configuration. (For the OEI tests, the pilots used OEI special training mode software to reduce the power of both engines to a level that simulated the loss of one engine.) The crew initiated the final planned OEI test at a speed of 185 knots. After the crew engaged OEI special training mode, rotor rotation speed (Nr) decayed from 100% to about 91%, and the crew began lowering the collective to stop Nr decay and increase Nr to 103% (the target Nr for recovery). About 5.5 seconds into the test, the crew stopped lowering the collective, and Nr only recovered to about 92%. About 6 to 7 seconds into the test, the helicopter began vibrating at a frequency of 6 hertz (Hz). The vibration was evident in both rotor systems, the airframe, the pilot seats, and the control inputs; the vertical vibration amplitude at the pilot seat peaked about 3 G. (G is a unit of measurement of acceleration; 1 G is equivalent to the acceleration caused by the earth's gravity [about 32.2 ft/sec2].) Nr remained between about 90% and 92% until about 12 to 13 seconds into the test, then began fluctuating consistent with collective control inputs; subsequent collective control input increases led to further decay in Nr. Nr decayed to about 80% as the collective was raised, and the main rotor blades began to flap out of plane. About 21 seconds into the test, the main rotor blades flapped low enough to impact the tail boom, severing it and causing the in-flight breakup of the helicopter.

The main rotor, tail rotor, flight controls, powerplants, and rotor drive systems exhibited no evidence of preexisting malfunction before the vibrations began. The structural wreckage did not exhibit evidence that the oscillations themselves resulted in a structural failure leading to the in-flight breakup. Examination of the wreckage revealed no indications that the helicopter had been improperly maintained.

Helicopter Performance After Stop in Nr Recovery

During previous OEI tests, the crew lowered the collective input to near or below 50% to allow Nr to recover. As airspeed increased during each test, the crew took longer to recover Nr to 103%. (At 102 knots, recovery time was 3.4 seconds, and at 175 knots, recovery time was 13 seconds.) However, after initiating the final OEI test at 185 knots, the crew only lowered the collective to 58% and subsequently only recovered Nr to 92%. While at 92%, the main rotor scissors mode was excited. (The main rotor scissors mode occurs when the lead-lag motions of the blades act in such a way that adjacent blades move together and apart in a scissoring motion. See the factual report for more information about the scissors mode.) The main rotor scissors mode excitation resulted in the 6-Hz airframe vertical vibration, which was transmitted to the crew seats and created a biomechanical feedback loop through the pilot-held collective control. A second feedback system, driven by the attitude and heading reference system (AHRS) inputs to the main rotor swashplate, also continued to drive the scissors mode and its resultant 6-Hz airframe vibration.

Biomechanical Feedback

Biomechanical feedback in the aircraft design industry refers to unintentional control inputs resulting from involuntary pilot limb motions caused by vehicle accelerations. The gain between the vertical acceleration and 6-Hz collective stick movement can be calculated by dividing stick movement by vertical acceleration. (If no biomechanical feedback existed, there would be no gain [0 inch per G].) During the accident, the collective stick moved, on average, 0.2 inch per every G of seat acceleration. The "nonzero" relationship between the control stick amplitude and the seat vibration illustrates that biomechanical feedback contributed to the helicopter's vibration. Further, a positive value of pilot gain occurred near 6 Hz, which indicates instability in the system (meaning that any input to the system will amplify as opposed to dampen). Thus, biomechanical feedback contributed to increases in vibration amplitude during this accident.

Although the helicopter manufacturer's design process for biomechanical feedback included software filters in the cyclic control laws to reduce certain types of oscillatory cyclic control inputs by the pilot, no filter was designed for the collective. Thus, the 6-Hz oscillatory collective inputs by the pilot were not filtered. As a result, a control feedback loop began when the pilot-held collective stick commanded an oscillatory collective pitch input (about 6 Hz) into the main rotor, increasing the 6-Hz vibration, which in turn increased the magnitude of the oscillatory (6-Hz) collective pitch input.

In addition, the gain between the pilot movement and the collective control stick movement in the vertical axis was never tested on a shake table before the accident. For the cyclic control, lateral vibration was introduced on a shake table. This test was conducted specifically for the helicopter model's side-stick cyclic since the manufacturer expected a different transfer function from that of a traditional cyclic. For the collective control, no such test was conducted despite this being the first helicopter with a side-stick collective control. While it is possible that the decision to not shake test in the vertical axis to inform the pilot model could have been influenced by schedule pressure, interviews did not suggest that decisions would have been different given the lack of anticipation of scissors mode and resulting aerodynamic effect.

Attitude and Heading Reference System


The AHRS is designed to detect uncommanded accelerations (such as the helicopter's reaction to a gust of wind) and reduce their effects by automatically providing corrective inputs to the main rotor swashplate. The AHRS detected and responded to the 6-Hz airframe vertical vibration in a manner that sustained the main rotor scissors mode and its resultant 6-Hz vibration. Specifically, analysis of the telemetry data revealed that the AHRS responded to the 6-Hz vibration with inputs to the main rotor swashplate analogous to a "cyclic stir" (when the cyclic control stick is moved in a stirring motion). The helicopter manufacturer's assessment of the AHRS-induced cyclic stir swashplate motion was that it would exacerbate the main rotor scissors mode. The AHRS is intended to respond primarily to lower-frequency uncommanded accelerations. Because the helicopter manufacturer did not predict an excitement of the scissors mode in the accident test flight conditions, the filter design of the AHRS allowed it to respond to the 6-Hz airframe vibration. Thus, the AHRS detected and attempted to attenuate the 6-Hz airframe vertical vibration, but its response instead exacerbated the main rotor scissors mode and its resultant 6-Hz vibration, closing the AHRS feedback loop.

Reasons for Crew Stop in Nr Recovery

Investigators explored possible reasons why the crewmembers stopped their recovery from the initial Nr droop, including a reaction to an abnormal condition on the helicopter, distraction from the recovery task, or a conservative response due to the high airspeed. Telemetry data does not indicate the existence of an abnormal condition when the crewmembers stopped their recovery. In addition, the chase helicopter crewmembers reported seeing no distractions or abnormalities outside of the helicopter (for example, birds).

Therefore, investigators focused on the crew's increasingly conservative response as the airspeed increased during the tests. During the previous OEI tests, as airspeed increased, the crew recoveries took more time to reach 103% Nr and collective response became less pronounced. During postaccident interviews, helicopter manufacturer test pilots indicated that they interpreted this trend as the tendency of the crew to be more judicious while applying collective at successively higher airspeeds to avoid recovering too fast and overspeeding the rotor or damaging the transmission. Thus, the crew may have been more conservative during recovery at the helicopter's high speed during the final test. The chief test pilot also stated that if Nr had stabilized, the pilot would not have been in a rush and was possibly initiating a slow recovery.

As an experimental research and development helicopter configured to carry two pilots and with no passenger seating, the accident helicopter was not required to be equipped with either a flight data recorder (FDR) or cockpit voice recorder (CVR) under the provisions of 14 Code of Federal Regulations (CFR) 91.609. (When certified as a transport-category rotorcraft under 14 CFR Part 29, the helicopter model will be equipped with both CVR and FDR recording capabilities.) A combination CVR and FDR (CVFDR) was installed in the flight test helicopter but was not operational at the time of the accident. Although investigators were able to examine and analyze telemetry data, a properly functioning CVFDR would have recorded any discussions between the accident pilots that could have offered more information about potential abnormal conditions, distractions, or reasons for their stop in recovery after initiation of the OEI test. Additionally, cockpit image recording capability would have recorded any pilot actions and interactions with the aircraft systems including avionics button presses, warning acknowledgements, and any other physical response to the aircraft. Cockpit audio and imagery could have provided insight into when the crewmembers first felt or detected the 6-Hz vibration, how they may have verbalized their assessment of an observed anomaly, and whether they attempted any specific corrective action because of the vibration. Thus, the lack of cockpit audio or image data precluded access to data needed to fully determine why the crew may have momentarily stopped the collective pitch reduction to recover Nr and any corrective actions the crew may have attempted as a result of the 6-Hz vibration.

Regardless of why the crew stopped recovery of Nr at 92%, other helicopter test pilots suggested in postaccident interviews that continuous flight in the 92% to 93% Nr range was not abnormal for an OEI maneuver (in this model helicopter and another model in the helicopter manufacturer's test program). This is further supported by another model in the helicopter manufacturer's test program during which extended flight occurred in the low 90% Nr range. (The other helicopter model did not encounter any unusual behavior [rotor mode/vibration] during the test points with the extended recovery time, and the pilots did not receive negative feedback on the recovery time.) The lack of any negative feedback on extended flight in the low 90% Nr range may have reinforced that flight through that range was appropriate. On the pilot displays (specifically, the power situation indicator [PSI]) in the accident helicopter model, 90% to 100% Nr is depicted as a green range or arc. The decision to fly continuously in the 92% to 93% Nr range is consistent with typical pilot association of green arcs with flight regimes that are appropriate for continuous flight. The company's flight technology specialist stated that the colors (green arc) presented on the PSI were a precedent taken from the other helicopter model test program, which suggests that it was likely not reevaluated for appropriateness given the accident helicopter's operating limitations. In addition, flight testing was only conducted for continuous flight at 103% and 100% Nr with all engines operative; however, no testing of Nr continuously between 90% to 100% while in an OEI condition was conducted. Extended flight in the low 90% Nr range during previous testing of another helicopter model and the depiction of 90% to 100% Nr in a green arc on the PSI may have contributed to the pilots' decision to stop in the 92% range during the recovery from the OEI maneuver, which resulted in the onset and increase of the 6-Hz vibration.

Crew Response to Low Nr and Vibration


Interviews with the helicopter manufacturer test pilots and engineers suggest that there were two ways for the pilots to exit the low Nr and, correspondingly, the vibration condition: (1) lower/reduce the collective to increase Nr or (2) exit OEI training mode, which would increase power available from the engines. About 1.5 to 2 seconds passed between the stop at 58% collective and the onset of the vibration. Had the pilots recovered Nr to 100%, it is possible that the main rotor scissors mode would have subsided and the airframe vibrations would have dampened.

Lowering the Collective


One option for recovering from the low Nr and vibration condition was to lower the collective to increase Nr. The investigation could not determine if the pilots' fluctuating collective inputs were deliberate when the 6-Hz vibration was dominant. Because the crew needed to be aware of low Nr to respond appropriately, investigators considered the available visual, aural, and tactile cues regarding Nr in the vibration environment.

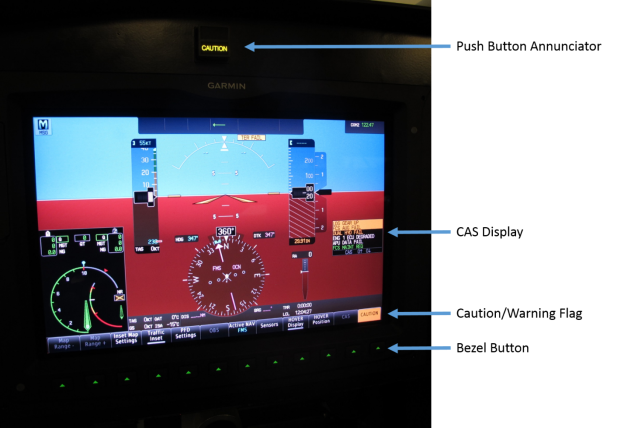

The visual cues available to the crew included the crew alerting system (CAS) text "ROTOR RPM LO," PSI numeric display, warning flag, warning push button annunciator (PBA), and the change of the PSI Nr display from a bar to an arc. The CAS text, warning flag, and warning PBA would have been flashing until acknowledged by the crew. Because the telemetry did not record crew button presses, it is not possible to know if the crew acknowledged these alerts. Studies indicate that visual acuity is negatively affected by vertical vibration, particularly in the 5- to 7-Hz frequency range (Lewis and Griffin 1980a; Lewis and Griffin 1980b). Results indicated that reading speed and accuracy degraded for amplitudes as low as 0.1 G (McLeod and Griffin 1989; Griffin and Hayward 1994). Further studies show that visual performance decreases with increasing vibration amplitude (Shoenberger 1972; Griffin 1975; Griffin 2012).

The vertical vibration amplitude at the pilot seat rose above 1 G from 10 seconds into the test until the end of the test, with peaks as high as about 3 G. Given the sensitivity of the human body to vibration frequencies near 6 Hz and the extreme amplitude of the vibration environment, the displays were likely unreadable to the crew (although the colors of the warning text, flag, and PBA may have been discernable). In addition, the change of the Nr display on the PSI from bar to arc may have been recognizable; however, reading of the needle would likely not have been possible in the vibration environment. Thus, the crew was likely unable to read visual information that provided specific low Nr information, although they may have had a generalized cue that Nr was low.

Aural cues available to the crew regarding low Nr included the master warning annunciation and the sound of decreasing Nr. The master warning aural tone would have annunciated at 12.5 seconds and 16.8 seconds (continuing until acknowledged by the crew). However, this tone was associated with at least 21 other warning messages and was not unique to the "ROTOR RPM LO" message despite a technical standard that requires that low Nr have a unique tone associated with it. The master aural tone annunciating continuously was chosen for test flight because audio files had not yet been developed; the helicopter manufacturer pilots and test team had decided that some aural annunciation of low Nr would be enough to proceed with test flights but that the distinct tone for low Nr was not immediately needed for flight test.

Aural cues can be used for redundancy if visual information is unavailable. The accident pilots were aware that a unique tone did not exist for low Nr; however, they likely were not able to retrieve unambiguous visual information to confirm the warning, outside of a change in shape of the rpm display. Had a unique aural warning tone been implemented in the helicopter, it could have provided a salient, unambiguous cue to the crewmembers that Nr was low.

Regarding the sound of decreasing Nr, under normal conditions, pilots can hear the decrease in Nr and would likely be able to tell the difference between 100% and 92% Nr. However, according to a postaccident statement by the helicopter manufacturer lead test pilot, it is uncertain whether the pilots would have heard the low Nr given the vibration environment during the accident flight.

The exceedance of engine limits, which can indirectly indicate low Nr, triggers tactile cues in the pilots' collective control. Increased friction on the collective would have been present 7 to 9 seconds into the test and after 11 seconds into the test; however, it is questionable whether the crew would have noticed this increase in friction given the extreme vibration environment.

In summary, although visual and aural warning cues were available to the crew during the event, unambiguous cues for low Nr were most likely unavailable visually because of the vibration and audibly because of a design decision regarding the test environment. Without an unambiguous cue for low Nr, it was unlikely that the pilots had properly distinguishable awareness of the low Nr condition for them to appropriately respond.

Exiting OEI Training Mode


According to the telemetry data, the crew did not exit OEI training mode; the engines continued producing power at a level consistent with OEI training mode remaining active until the in-flight breakup. The production version of OEI training mode software, originally created by the engine manufacturer, was modified by the helicopter manufacturer to eliminate a safeguard that automatically exited the OEI training mode when Nr fell below 90%. According to the helicopter manufacturer, automatic disengagement at 90% Nr is not low enough to allow development and demonstration of OEI recovery across the flight envelope during testing, and a lower Nr value for automatic disengagement was deemed unnecessary due to the highly controlled test environment. Thus, the crew would have had to manually exit OEI training mode. Had there been an automated safeguard to exit OEI training mode at a certain Nr threshold, it is possible that the return of full dual-engine power would have compensated for the higher power demanded by increasing collective stick inputs and returned Nr to normal levels. Investigators considered several reasons why the crew did not manually exit OEI training mode.

First, investigators considered if the crew attempted to exit OEI training mode but was unable to do so due to physical limitations of the hardware. However, postaccident shake tests suggest that the display and touch functionality of the Garmin Touch Control (GTC) panel, which controlled the OEI training mode, remained intact during the vibration profile. Thus, it is unlikely that physical limitations of the hardware itself prevented the crew from exiting OEI training mode.

Second, investigators considered if the crew attempted to exit OEI training mode but was unable to do so due to manual hand tracking and vibration influences. There are three ways to manually exit OEI training mode: pressing the engine fail button on the GTC OEI training page (which would be displayed on the GTC during the test), exiting the OEI training page on the GTC (using the BACK button), or moving the COSIF (crank, off, start, idle, fly) switch to any other position than "Fly." Research suggests that performance degrades in the presence of vibration and is particularly poor in the 6-Hz range as limb motion can be greater than input amplitudes at that frequency (Moseley and Griffin 1986; Collins 1973; Griffin and Hayward 1994; McLeod and Griffin 1986; Crossland and Lloyd 1993; Holcombe and Holcombe 1997; Wertheim et. al. 1995). Limb motion is also more complex given the coupled dynamics of the human body where acceleration in a single axis could result in limb motion in all six axes (McLeod and Griffin 1986; Griffin 2012; Paddan and Griffin 1988). The extreme amplitudes of the vibration could have prevented the pilots from successfully moving their hands to a target location to use any of these three methods to exit OEI training mode.

Finally, it is possible that the accident crew did not attempt to exit OEI training mode. Test pilot interviews suggest that, in an abnormal situation, stabilizing the aircraft would be the first priority; exiting OEI training mode may not have been considered to be an option by the accident crew.

As noted earlier, the CVFDR was not operational, and possible discussions between the pilots, which may have provided information about why they did not exit OEI training mode, were not available to help determine why they did not exit OEI training mode.


Postaccident Actions by the Helicopter Manufacturer


Since the accident, the helicopter manufacturer has


  • designed a software filter for the collective control law to dampen biomechanical feedback due to oscillatory control inputs as the frequency of control input increases;
  • adjusted the aero-servo-elastic model with a correlation factor to incorporate the aerodynamic effects observed during flight test and the accident test to preclude such occurrences seen in the accident flight's telemetry data;
  • performed shake tests with pilots using a side-stick collective to determine and incorporate the transfer function for human biomechanical feedback;
  • modified the AHRS software filters to further reduce the AHRS response to a 6-Hz airframe vibration;
  • indicated that, for the accident helicopter model, cockpit audio is now being recorded by an onboard CVFDR, and communications to and from the ground monitoring station are recorded by the CVFDR and the telemetry system during all flights (cockpit video is also being recorded by the instrumentation system and archived at the ground station);
  • issued a company-wide business directive to ensure that cockpit audio is recorded during all telemetered flight test activities across all flight test sites;
  • plans to conduct flight testing in the 95% to 100% range of Nr in an OEI condition;
  • plans to implement, for the accident helicopter model, the unique low Nr aural tone in their test aircraft, and a software update that includes a larger font size for the Nr numeric display on the PSI;
  • plans to implement a separate PBA specifically for low Nr and is incorporating more salient cues into the tactile cueing system;
  • plans to incorporate the automatic termination of OEI training mode should Nr fall below a certain limit; and
  • incorporated a safety officer for the accident helicopter model test program who will have dedicated safety-related responsibilities.

Probable Cause and Findings

The National Transportation Safety Board determines the probable cause(s) of this accident to be:

A severe vibration of the helicopter that led to the crew's inability to maintain sufficient rotor rotation speed (Nr), leading to excessive main rotor blade flapping, subsequent main rotor blade contact with the tail boom, and the resultant in-flight breakup. Contributing to the severity and sustainment of the vibration, which was not predicted during development, were (1) the collective biomechanical feedback and (2) the attitude and heading reference system response, both of which occurred due to the lack of protections in the flight control laws against the sustainment and growth of adverse feedback loops when the 6-hertz airframe vibration initiated. Contributing to the crew's inability to maintain sufficient Nr in the severe vibration environment were (1) the lack of an automated safeguard in the modified one-engine-inoperative software used during flight testing to exit at a critical Nr threshold and (2) the lack of distinct and unambiguous cues for low Nr.

Findings


Aircraft

Prop/rotor parameters - Attain/maintain not possible (Cause)
Main rotor blade system - Capability exceeded (Cause)
Flight control system - Design (Factor)

Personnel issues
Use of equip/system - Pilot (Factor)
Use of equip/system - Copilot (Factor)
Lack of action - Pilot (Factor)
Lack of action - Copilot (Factor)

Environmental issues
Vibration - Effect on personnel (Cause)
Vibration - Effect on operation (Cause)
Vibration - Ability to respond/compensate (Cause)
Vibration - Awareness of condition (Factor)

Organizational issues
Equip certification/testing - Manufacturer (Factor)
Interface design - Manufacturer (Factor)
Equipment design - Manufacturer (Factor)
Policy/procedure development - Manufacturer (Factor)

Factual Information


History of Flight


Maneuvering

Inflight upset
Aircraft structural failure (Defining event)

On July 6, 2016, about 1148 central daylight time, an experimental research and development Bell 525 helicopter, N525TA, broke up in flight and impacted terrain near Italy, Texas. The two test pilots received fatal injuries, and the helicopter was destroyed. The helicopter, which was owned by Bell Helicopter Textron, Inc., was being operated under the provisions of 14 Code of Federal Regulations (CFR) Part 91 as a developmental flight test. Visual meteorological conditions prevailed at the time of the accident. The flight originated from Arlington Municipal Airport, Arlington, Texas.

About 0630 on the morning of the accident, the two test pilots, flight test engineers, and a chase helicopter flight crew briefed the planned flight. The brief detailed that the accident helicopter, accompanied by a chase helicopter, would proceed to the Arlington Initial Experimental Test Area (about 30 miles south of Arlington Municipal Airport) to perform the in-flight portion of the tests. The purpose of the flight was to evaluate engine loads at maximum continuous power, two-to-one-engine simulated engine failures, longitudinal roll oscillations, and run-on landings in the heavy, forward center-of-gravity configuration.

The test card for the two-to-one-engine simulated engine failure detailed that the pilots would simulate the loss of engine power from one engine while keeping both engines operating by using one-engine-inoperative (OEI) special training mode software, which reduced the power output of both engines to represent the maximum power that can be produced by one engine. When the OEI special training mode was engaged and a loss of power was simulated, the pilot would monitor rotor rotation speed (Nr) and intentionally delay his response by about 1 second before recovering from the maneuver by lowering the collective to reduce the power demanded by the rotor (and increase Nr). The lowest allowable Nr limit was identified as 86%; if Nr went below 86%, the test would be halted, and the crew would recover Nr to 103%, exit OEI special training mode, and return to steady level flight. A Bell structural engineer stated that flight below 86% Nr would result in the helicopter returning to base. During test flights, flight test engineers monitor real-time telemetry data from the helicopter under the oversight of the flight test director, who was in direct radio communications with both the test helicopter pilots and the chase helicopter pilots.

About 0959, weather conditions were determined to be acceptable for the flight, and about 1038, the helicopter departed for the test area, followed by the chase helicopter. About 1048, the pilots established the helicopter's maximum level flight airspeed (Vh) at 4,000 ft density altitude (DA) as 148 knots calibrated airspeed (KCAS). After performing steady-heading sideslips, the pilots performed a series of level turns and then began the two-to-one-engine simulated engine failures.

About 1108, the pilots set the OEI training mode shaft horsepower to a value predetermined by the flight engineers. The first three tests were performed in level flight at 102 KCAS, 131 KCAS, and 145 KCAS. The pilots then performed tests at 155 knots true airspeed (KTAS), 160 KTAS, 165 KTAS, and 175 KTAS, which required the helicopter to be in a shallow descent to achieve the required airspeed. These OEI tests had resulted in a rotor speed decay of 5 to 13% Nr. During these tests, to allow Nr to recover to 97% or greater, the crew lowered the collective input to near or below 50%. (100% is the full-up collective position, and 0% is the full-down collective position.) Data recorded on the helicopter's flight test recorder system, which was typically downloaded after each test flight and also transmitted via a telemetry stream to Bell's flight-test facility for real-time analysis and recording, indicate the build-up tests and recovery time required (see table 1). (Record 45 was a void record, and record 49 was aborted because of two engine torque spikes typical of wind gust encounters.)

Table 1. Build-up tests and recovery time required.

During the build up to the final test, the flight test engineers received warning and alert notifications, most of which related to main rotor and tail rotor pitch link loads, pylon loads, and tail boom loads. These alerts and warnings were expected as the airspeed increased and the dynamic loads on the rotor system and airframe also increased. During most of the OEI transitions, the pilot responded by lowering the collective between 1 and 2 seconds after the simulated loss of engine power. However, with each increase in airspeed, the time the crew took to recover Nr to the target value of 103% was longer. Bell test pilots indicated that they interpreted this trend as the tendency of the crew to be more judicious while applying collective at successively higher airspeeds in order to avoid recovering too fast and overspeeding the rotor or damaging the transmission.

About 1148, the final test was performed at 185 KTAS, which was the helicopter's never-to-exceed speed (Vne) at the time of the test flight; the set up and entry were the same as the previous tests. OEI was engaged, and Nr drooped to about 91% within 1.5 seconds. The Nr decay was stopped by the pilot's reduction of collective, and Nr began to recover and leveled out around 92%. The crew stopped lowering the collective at the 58% collective stick position. About 7 seconds after arresting the Nr decay (about 12 seconds into the test), the structural dynamics engineer noticed increased engine vibrations, at which point he called "knock-it-off." The test director radioed to the Bell 525 pilots to "knock-it-off," while other engineers in the telemetry room were receiving warnings and alerts and were reinforcing the "knock-it-off" call.

The crew of the chase helicopter, which was positioned about 100 ft above and on the right side of the Bell 525 about 3 to 4 rotor diameters away, heard the test director call "knock-it-off" about the same time they observed the 525's rotor blades flying high and the rotor looking wobbly and slow. The chase helicopter crew radioed, "Hey, you're flapping pretty good," but the 525 pilots did not respond. About 21 seconds into the test, the main rotor severed the tail boom, and the telemetry signal was lost. The chase helicopter crew observed the helicopter's tail and fuselage jack-knife and debris separate from the helicopter. The chase helicopter crew radioed to the test director, "We've had a major accident," and landed near the wreckage to attempt assistance.

Pilot Information

Certificate: Airline Transport; Flight Instructor; Commercial; Military
Age: 36, Male
Airplane Rating(s): Single-engine Land
Seat Occupied: Right
Other Aircraft Rating(s): Helicopter
Restraint Used: 5-point
Instrument Rating(s): Helicopter
Second Pilot Present: Yes
Instructor Rating(s): Helicopter; Instrument Helicopter
Toxicology Performed: Yes
Medical Certification: Class 2 Without Waivers/Limitations
Last FAA Medical Exam: 04/11/2016
Occupational Pilot: Yes
Last Flight Review or Equivalent: 11/06/2015
Flight Time:  323 hours (Total, all aircraft), 78 hours (Total, this make and model), 245 hours (Pilot In Command, all aircraft), 37 hours (Last 90 days, all aircraft), 7 hours (Last 30 days, all aircraft)

Co-Pilot Information


Certificate: Airline Transport; Flight Instructor; Commercial; Foreign; Military
Age: 43, Male
Airplane Rating(s): Multi-engine Land; Single-engine Land
Seat Occupied: Left
Other Aircraft Rating(s): Helicopter
Restraint Used: 5-point
Instrument Rating(s): Helicopter
Second Pilot Present: Yes
Instructor Rating(s): Instrument Helicopter
Toxicology Performed: Yes
Medical Certification: Class 2 Without Waivers/Limitations
Last FAA Medical Exam: 06/01/2016
Occupational Pilot: Yes
Last Flight Review or Equivalent: 11/06/2015
Flight Time:   756 hours (Total, all aircraft), 62 hours (Total, this make and model), 531 hours (Pilot In Command, all aircraft), 16 hours (Last 90 days, all aircraft), 2 hours (Last 30 days, all aircraft)

The pilot held a letter of authorization (LOA) from the Federal Aviation Administration (FAA) dated December 2, 2015, authorizing him to act as pilot-in-command (PIC) of the Bell experimental helicopter designated model 525. He completed crew resource management (CRM) training on January 12, 2015. The pilot graduated from the United States Naval Test Pilot School (USNTPS) in 2010. He then worked on numerous flight test projects involving the Bell AH-1W (SuperCobra, a twin-engine attack helicopter) and UH-1Y (Venom/Super Huey, a twin-engine utility helicopter). On September 23, 2013, he was hired by the Bell Helicopter flight test department as a pilot for the Bell 525 program.

The copilot held an LOA from the FAA dated December 2, 2015, authorizing him to act as PIC of the Bell experimental helicopter designated model 525. He completed CRM training on January 12, 2015. The copilot completed US Navy flight training in 2000 and graduated from the USNTPS in 2006. He then worked on numerous AH-1W and UH-1Y test programs. On August 2, 2010, he was hired by the Bell Helicopter flight test department as a pilot for the Bell 525 program.

Aircraft and Owner/Operator Information

Aircraft Manufacturer: BELL
Registration: N525TA
Model/Series: 525
Aircraft Category: Helicopter
Year of Manufacture:
Amateur Built: No
Airworthiness Certificate: Experimental
Serial Number: 62001
Landing Gear Type: Retractable - Ticycle
Seats: 2
Date/Type of Last Inspection:
Certified Max Gross Wt.: 21419 lbs
Time Since Last Inspection:
Engines: Turbo Shaft
Airframe Total Time:
Engine Manufacturer: General Electric
ELT:  Installed, not activated
Engine Model/Series: CT7-2F2
Registered Owner: Bell Helicopter - Textron
Rated Power:
Operator: Bell Helicopter - Textron
Operating Certificate(s) Held:  Certificate of Authorization or Waiver (COA)

The accident helicopter was a conventional main rotor and tail rotor design (see figure 1). On April 25, 2016, the helicopter received its latest experimental research and development airworthiness certificate from the FAA. The helicopter was a manufacturing prototype being developed for certification as a transport-category helicopter in compliance with 14 CFR Part 29. As part of the airworthiness certificate, the FAA issued an operating limitations document (also dated April 25, 2016) that specified the following: pilots operating the helicopter must hold a temporary LOA issued by an FAA flight standards operations inspector to act as PIC, the helicopter must be maintained by an FAA-approved inspection program, day visual flight rules flight operations are authorized, and all flights must be conducted within the Arlington Initial Experimental Test Area. The helicopter was estimated to weigh about 19,975 lbs at the time of the accident.



Figure 1. Accident helicopter (Bell 525, N525TA).

Source: Bell Helicopter

The Bell 525 helicopter had a five-bladed main rotor that provided helicopter lift and thrust and rotated in a counterclockwise direction when viewed from above. The main rotor was a fully articulated system that used elastomeric bearings to accommodate blade feathering, flapping, and lead-lag motions. Fluid-elastic dampers moderated lead-lag motion of the blades. The five main rotor blades were identified by colored stickers, presented in order of advancing rotation (when seated in the pilot seat and observing the blades pass from right to left): blue, orange, red, green, and white. The Bell 525 also had a four-bladed, fully articulated, canted tail rotor that provided thrust to counteract main rotor torque effect, control helicopter yaw, and provide lift. The four tail rotor blades were identified by colored stickers, presented in order of advancing rotation: blue, orange, red, and green. The helicopter was equipped with two General Electric (GE) CT7-2F1 turboshaft engines, mounted aft of the main transmission, and one Honeywell RE100BR auxiliary power unit (APU), mounted between the two engines at the aft end of the engine deck. The helicopter was equipped with a triple-redundant fly-by-wire flight control system with a triplex hydraulic system. Additionally, the helicopter was equipped with retractable tricycle landing gear.

The cockpit was configured for two pilots in a side-by-side seated position and a center console between them. Each pilot had a cyclic side-stick controller forward of the seat's right armrest, a collective side-stick controller immediately forward of the seat's left arm rest, and a set of pedals forward of their feet. The instrument panel consisted of four identical primary flight display (PFD)/multifunction display (MFD) panels. The center console had two Garmin Touch Control (GTC) panels, the landing gear handle, the Nav/Com panel, and the flight test switch panel, which included some controls for the OEI special training mode software. Directly above the GTCs were the engine control COSIF (crank, off, start, idle, fly) knobs. Each pilot had an additional pilot display unit that provided real-time flight test instrumentation parameters such as DA, boom airspeed, mast airspeed, engine torque, load factor, pitch/yaw/roll rates, slip angle, and main rotor and tail rotor flapping angles.

OEI Training Mode

OEI training mode is a specific GE software-driven capability that permits simulation of a single-engine failure without actually rolling back or shutting down an engine in flight. When the flight crew engages the OEI training mode, both engines reduce power to represent the power available from a single engine. Consistent with normal operations and depending on the flight conditions, if the power demanded by the rotor exceeds the power available, Nr will droop. If single-engine power is insufficient to sustain the forward speed, the pilot must reduce the power demand by lowering the collective control, applying aft cyclic (to reduce speed), or using a combination of both. Nr increases to 103% when the power required matches the single-engine power available.

To engage OEI training, the pilot or copilot navigates to the OEI training page on the GTC and selects the engine to fail on the touch screen. Once selected, a green bar appears on the failed engine button to signal that OEI training mode was engaged (see figure 2). When OEI training mode is engaged, the pilot's side (right-seat) PFD displays simulated OEI engine values, and the copilot's side (left-seat) PFD displays the actual all-engines-operative (AEO) data.




Figure 2. OEI training page on the GTC.

Source: Bell Helicopter

The OEI special training mode that Bell used for the accident flight test did not incorporate an automatic disengagement of OEI training mode for low Nr. Bell modified the production version of OEI training mode software, originally created by GE, to eliminate a safeguard that automatically exited the OEI training mode when Nr fell below 90%. According to Bell, automatic disengagement at 90% Nr was not low enough to allow development and demonstration of OEI recovery across the flight envelope during testing, and a lower Nr value for automatic disengagement was deemed unnecessary due to the highly controlled test environment. To manually exit OEI training mode, the pilot could (1) press the engine fail button on the GTC (the same button used to engage OEI training mode), (2) exit the OEI training page on the GTC (using the BACK button), or (3) move the COSIF switch to a position other than "Fly" and then return the switch to "Fly." The Bell 525 lead test pilot indicated in a postaccident interview that the options to exit OEI training mode were not discussed formally with all the test pilots but were specifically discussed with the accident test pilot. Bell 525 test pilots interviewed said that they almost always press the engine fail button on the GTC to exit OEI training mode; some Bell pilots were aware of the other methods to exit OEI training mode while other test pilots were not. Disengaging OEI training mode would make both engines available to provide full power to restore the reference Nr to 100% if the rotor was in a drooped state.

The production OEI training mode, which will be used in Bell 525 production helicopters, includes an automatic disengagement of OEI training if Nr decays below 90% (pending validation via testing). In the production OEI training mode, automatic exit would occur in the following circumstances:

-Loss of an engine.
-Torques of the two engines are not within ~30 ft-lb of each other.
-There are any significant engine failures (any fault that would cause local channel degraded on any of the 4 channels). If the enable bit for training is set (bit 20) AND both engine request bits are set (bit 21 and 22). To engage training only one-engine request bit can be set.
-Power turbine speed (Np) is 5% below the reference value (having previously been within 1% of the reference while in training) or to a value below 90%.
-Np is above 106%.
-Real engine gas producer turbine speed is above 106%.
-Real engine measured gas temperature is above 1934.3° F/ 1056.8° C.
-Real single-engine torque is above 521 ft-lb (67.7%).
-Real engine oil temperature is above 148.89° C.
-Low oil pressure switch is tripped.

OEI training mode flight test risk analysis worksheets documented planned operational risk mitigation for OEI training. A worksheet approved on June 29, 2015, included a discussion of the risk of low Nr, and a worksheet approved on April 1, 2016, included a discussion about engine overtorquing.

Power Situation Indicator (PSI)

The PSI was located in the bottom left corner of the PFD for each pilot. The bars in the bottom right corner of the PSI represented Np for the number 1 engine, Nr, and Np for the number 2 engine, respectively. The arc in the center of the display depicted the percentage of engine value compared to its limit (see figure 3).





Figure 3. Example of PSI on the Bell 525.

Source: Bell Helicopter

Indications of Low Rotor Rpm in the Bell 525

Power Situation Indicator

The PSI displayed Nr as a vertical scale (center bar in lower right indicator) when Nr was above 90%, as shown in figure 3. If Nr dropped below 90%, the display changed to an analog needle that displayed a green arc for Nr between 100 and 90%, a yellow arc for Nr between 86 and 89% Nr, and a red arc below 86% Nr (see figure 4). (Overtorquing limits appear above 100%.)



Figure 4. PSI displaying Nr as an arc.

Source: Bell Helicopter

The CAS was located in the middle right side of the PFD and displayed color-coded messages for status, advisory, caution, and warning alerts (see figure 5). The Bell 525 lead test pilot described warnings as items that need immediate attention and cautions as items that will need attention but not immediately. (Warnings were displayed as white text on red background, cautions were displayed as yellow text on black background, advisories were displayed as white text on black background, and status messages were displayed as green text on black background.) When warnings and caution alerts were triggered, the displayed messages would flash until either the cockpit master warning/caution push button annunciator (PBA) was pressed, the bezel button on the lower right corner of the PFD was pressed, or the triggered condition was inactive for more than 5 seconds. In addition, a caution/warning flag would appear in the lower right corner of the PFD, and a caution/warning light would illuminate on the PBA. For the accident helicopter, if Nr dropped below 90% (in AEO or OEI), a "ROTOR RPM LO" warning-level message appeared (see figure 6). Once the condition cleared, the message would immediately disappear.




Figure 5. Location of visual CAS information available to crew.

Source: Bell Helicopter (modified by the National Transportation Safety Board)




Figure 6. Example of PFD during "ROTOR RPM LO" warning.

Source: Bell Helicopter

An aural tone also annunciated with a CAS alert. The technical requirements specification indicated that the caution audio tone would be a "ping" decaying over 0.5 second that sounded when each caution or warning message activated, the warning audio tone would be three "pings," and the low rotor rpm tone would be a unique continuous low/high/low warble to be played continuously as long as the condition existed or until muted.

In the accident helicopter, the aural tone annunciated for "ROTOR RPM LO" was a master warning tone that was not unique to low Nr and was associated with at least 21 other warning messages. The Bell 525 lead test pilot indicated that, during the experimental flight test, many of the aural messages were still under development; the tones had been selected but not implemented. The test team determined that having some aural indication for low Nr was sufficient for development flight testing. He stated that the accident crew had flown OEI tests previously and had conducted autorotation testing with test conditions that would likely have triggered the low Nr warning. He also stated that the crew was likely exposed to the master warning for low Nr during flight testing and in the Relentless Advanced Systems Integration Laboratory (RASIL). (More information about the RASIL can be found in the Organizational and Management Information section.)

The chief pilot of the Bell test program stated that, without information from the PFD, he would rely on rotor aural cues to gauge rotor speed. The Bell 525 lead test pilot stated that, lacking any instrument indication, pilots could usually determine rotor speed (high or low) by the sound: specifically, they could hear an engine winding down or sense higher vibrations at higher airspeeds. The Bell 525 lead test pilot further indicated that, under normal conditions, pilots can hear the decrease in Nr and would be able to tell the difference between 100% and 92% Nr but given the vibration environment during the accident flight, it is uncertain whether the pilots would have heard the low Nr.

Summary of Low Nr Indications for the Accident Flight Crew

Table 2. Indications to the accident flight crew regarding low Nr during the event profile.



Maintenance

During the experimental ground and flight testing of the accident helicopter, discrepancies and anomalies were recorded, prioritized, and tracked. Aircraft systems interim procedures (ASIP) provided instructions for periodic or on-condition inspection and/or maintenance. Inspection tasks, including those required by ASIPs and experimental engineering orders, were logged into a database with comments, including inspection results. Recent maintenance performed on the accident helicopter before the accident flight included the following:

-A nondestructive inspection and tap test of all four tail rotor blades (no damage noted).
-A detailed visual inspection of the tail rotor hub (no damage noted).
-A torque check of the pylon beam attaching hardware (no movement of the attaching hardware noted).
-A recurrent inspection of airframe longerons required by an ASIP (no anomalous findings reported).

Meteorological Information and Flight Plan

Conditions at Accident Site: Visual Conditions
Condition of Light: Day
Observation Facility, Elevation:
Observation Time:
Distance from Accident Site:
Direction from Accident Site:
Lowest Cloud Condition:
Temperature/Dew Point:
Lowest Ceiling:
Visibility:
Wind Speed/Gusts, Direction:
Visibility (RVR):
Altimeter Setting:
Visibility (RVV):
Precipitation and Obscuration:
Departure Point:  Arlington, TX (GKY)
Type of Flight Plan Filed: Company VFR
Destination: Arlington, TX (GKY)
Type of Clearance: Unknown
Departure Time: 1035 CDT
Type of Airspace:

Arlington Municipal Airport is located 31 miles north-northwest of the accident site. The Arlington automated surface observation system (elevation 628 ft mean sea level [msl]) recorded observation for 1145 was wind from 170° at 15 knots, 10 miles visibility, sky clear of clouds, temperature 32°C, dew point 23°C, and altimeter of 29.95 in Mercury (Hg).

Hillsboro Municipal Airport is located 15 miles south-southwest of the accident site. The Hillsboro automated weather observation system (elevation 686 ft msl) recorded observation for 1136 was wind from 190° at 16 knots with gusts to 22 knots, 10 miles visibility, scattered clouds at 3,000 ft, temperature 31°C, dew point 23°C, and altimeter at 29.98 in Hg.

Wreckage and Impact Information

Crew Injuries: 2 Fatal
Aircraft Damage: Destroyed
Passenger Injuries: N/A
Aircraft Fire: On-Ground
Ground Injuries: N/A
Aircraft Explosion: None
Total Injuries: 2 Fatal
Latitude, Longitude:  32.246111, -96.919722 (est)

The main wreckage field was 2,200 ft from the last transmitted GPS point, along the flightpath heading of 320°. The main wreckage site included an impact crater, remnants of the main fuselage, cockpit, main transmission and main rotor hub, two of the five main rotor blades (blue and green), the forward portion of the tail boom, and both engines. There was evidence of a postcrash fire at the main wreckage site. The wreckage debris path at the main wreckage site was about 200 ft in length and was oriented about 315° magnetic.

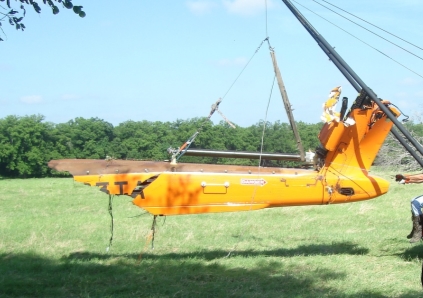

The secondary wreckage site was about 1,300 ft southeast of the main wreckage site and comprised the aft portion of the tail boom, which contained the tail rotor drive system, intermediate gearbox, tail rotor gearbox (TRGB), and tail rotor. A debris field extended between the last data point and the main wreckage covering about 4,000 ft (north to south) by 1,700 ft (east to west). Three of the five main rotor blades (orange, white, and red) and various pieces of forward cowlings, cockpit frames, and cabin doors were found separate from the main and secondary wreckage sites in the debris field. Additionally, lightweight debris, such as insulation and main rotor blade skin pieces, was found scattered to the northeast of the debris path between the main and secondary wreckage sites, with the farthest piece being found about 1,520 ft away from the debris path between the main and secondary wreckage sites (see figure 7).




Figure 7. The location of the main wreckage site, secondary wreckage site, and selected items from the wreckage debris field.

The main fuselage was highly fragmented and exhibited evidence of thermal damage. The cockpit wreckage did not sustain significant thermal damage. Fractured pieces of the cyclic and collective side sticks were observed within the cockpit wreckage. The lateral push-pull tubes were retained in the cockpit wreckage but exhibited fractures consistent with overload. Both engines remained installed on the engine deck and exhibited thermal distress from exposure to the postcrash fire. The forward portion of the tail boom exhibited an angled fracture line at its aft end consistent with main rotor blade contact. The tail boom attachment points to the main fuselage exhibited fractures near the upper left corner and lower right corner. The aft portion of the tail boom was found resting partially inverted, with the tail rotor head and one tail rotor blade wholly embedded into the ground and exhibited an angled cut line at its forward end consistent with main rotor blade contact (see figure 8).




Figure 8. Angled cut line at the forward end of the aft section of the tail boom.

Source: GE Aviation

The main rotor hub remained attached to the main rotor shaft. The inboard end of the blue main rotor blade exhibited evidence of thermal damage, and the root end of the blade airfoil remained attached to its respective grip assembly via three blade retention bolts. A 14-ft-long inboard section of the orange main rotor blade was found about 1,140 ft southeast of the main wreckage site with its inboard end embedded in the ground and its outboard end embedded in tree branches; the remainder of the blade was found about 2,880 ft southeast of the main wreckage site. Yellowish-orange paint transfer marks (similar in color to the primer found on portions of the airframe) were observed on the leading-edge surfaces in the area where the blade fractured into two distinct pieces, and additional orange paint transfer marks were observed on the leading-edge surfaces. Gouge marks into the lower blade surface and damage to the blade afterbody were observed. The red main rotor blade was found embedded in a tree about 1,400 ft southeast of the main wreckage site; impact marks on the leading edge, a fracture on the spar, and a chordwise gouge on the lower surface of the blade were observed. An inboard section of the green main rotor blade was recovered adjacent to the main transmission at the main wreckage site, and a 9-ft-long outboard section of the blade was found in a tree canopy about 1,325 ft southeast of the main wreckage site. The white main rotor blade was found on the ground about 350 ft southeast of the main wreckage site; the upper and lower grips were both fractured, while the blade airfoil remained attached. The blade leading-edge abrasion strip exhibited impact marks that included orange and yellow paint transfer marks.

The tail rotor head remained attached to the TRGB and exhibited no evidence of cracks or fractures. The blue tail rotor blade leading edge was partially embedded into the ground; a small puncture was observed on the outboard surface. The orange tail rotor blade leading-edge tip was found embedded into the bottom-left edge of the tail cone; the orange tail rotor blade tip end afterbody exhibited a mid-chord fracture extending about 10 inches inboard. The red tail rotor blade trailing edge was partially embedded into the ground. The green tail rotor blade was wholly embedded into the ground; removal of the tail rotor revealed the blade airfoil had partially folded over immediately outboard of the grip attachment. Three of the four tail rotor dampers remained intact and were able to be bench tested; the fourth tail rotor damper separated into two halves and could not be bench tested. Dynamic bench testing of the three tail rotor dampers did not reveal evidence of anomalous response behavior.

Flight Recorders

The accident helicopter was equipped to carry a pilot and copilot with no passengers and was not required to be equipped with either a flight data recorder (FDR) or cockpit voice recorder (CVR) under the provisions of 14 CFR 91.609. A combination CVR and FDR (CVFDR) was installed but was not operational at the time of the accident. (When certified as a transport-category rotorcraft under 14 CFR Part 29, the Bell 525 will be equipped with both CVR and FDR recording capabilities.) The accident helicopter was heavily instrumented with several aircraft- and ground-based recording systems, both production and flight-test based, including a streaming telemetry system, helicopter monitoring unit (HMU), avionics recorders, and PFD/MFD recording capability.

The National Transportation Safety Board (NTSB) received the following components with flight data recording and storage capabilities: Simmonds Precision Products Vigor HMU (serial number [S/N] 0006); CVFDR (S/N 009-01029); 128 gigabyte (GB) solid-state drive (SSD) from aircraft high-speed avionics bus (S/N TW-032GYJ-55085); 4 SD memory cards (S/N unknown); and Zodiac Aerospace remote storage module (RSM) 128 GB (S/N 052405-112012). Regarding the HMU and 4 SD memory cards, all the data was available from other sources. Regarding the CVFDR, the data download file was determined to be blank; the FDR may not have been receiving data or been fully configured in the helicopter. Regarding the SSD, due to the extent of the damage, no data could be recovered.

Zodiac Aerospace RSM 128 GB

The Zodiac Aerospace RSM, the data storage medium of the flight test recorder system installed on N525TA, is a solid-state hard drive with 128 GB capacity and an integrated E-SATA download interface. The data recorded on this drive, which was typically downloaded after each test flight, was the primary data source for Bell's flight test analysis team and was sourced from the following sensors and aircraft systems:

  • Flight test strain gauges in the fuselage, main rotor, tail rotor, engine, and engine mounts.
  • Production accelerometers in the drive system, rotors, and engine/APU.
  • Flight controls data bus including ARINC-429/1553/RS-232/RS-485.
  • Hydraulic system temperatures, pressures, and flows.
  • Production and flight test air data systems, including temperatures and pressures.
  • Both engines, all engine control channels of temperatures, pressures, speeds, gearboxes, and shafts.
  • Flight test temperature readings in the aircraft skin.
  • Avionics and flight displays systems.

The data stream recorded by the RSM was also transmitted via a telemetry stream to a ground station at Bell's flight-test facility for real-time analysis and recording.

The RSM, which was ejected from the helicopter during the crash sequence and was found apart from the main wreckage, was in good condition, with no apparent impact or thermal damage. Bell extracted the data under the NTSB's supervision. The RSM recording contained about 1 hour 26 minutes of data, including preflight and flight activities; the event flight was the only flight recorded on the drive. Once processed, the data was segregated into "prime" data (data taken during a test) and "non-prime" data (data taken at all other times). There were 41 periods of prime data in the recording, including the period up to and including the end of the recording. The RSM engine data showed that the engines were operating as commanded throughout the flight. (More information about test 51 can be found in the Tests and Research section.)

Medical And Pathological Information

The Office of the Medical Examiner for the county of Dallas, Texas, performed an autopsy on the pilot and determined that the cause of death was thermal and blunt force injuries.

The FAA Bioaeronautical Sciences Research Laboratory performed toxicology testing on specimens from the pilot. The specimens were noted as being putrefied; tests for carbon monoxide and cyanide were not performed, ethanol was detected in muscle, no ethanol was detected in the brain, and none of the listed drugs in the toxicology report were detected in the liver specimen.

The Office of the Medical Examiner for the county of Dallas, Texas, performed an autopsy on the copilot and determined that the cause of death was blunt force injuries.

The FAA Bioaeronautical Sciences Research Laboratory performed toxicology testing on specimens from the copilot. The specimens were noted as being putrefied; tests for carbon monoxide and cyanide were not performed, ethanol was detected in muscle, no ethanol was detected in the liver, propanol was detected in muscle, and none of the listed drugs in the toxicology report were detected in lung or liver specimens.

Tests And Research

The helicopter's flight telemetry system recorded flight data on the aircraft and streamed it to the test crew monitoring the flight from the ground. The lowest data collection rate was 31.25 hertz (Hz) and the highest was 4,000 Hz. Data was recorded continuously throughout the test and then divided into identifying records for each test point performed. When the pilot initiated a new test, the test timer started from zero. The helicopter was on test 51 (which ran for 21.18 seconds) when the accident occurred, indicating it was the 51st flight test point on the day of the accident.

For the Vne of 185 knots, a single engine is insufficient to maintain the flight condition; management of Nr is critical to recovering from the loss of an engine. Pilot response at high speed is to lower the collective to reduce torque on the rotor and/or to pull the longitudinal cyclic back to reduce the airspeed; both actions result in reducing the power required by the main rotor and allowing Nr to recover. Once rotor speed has recovered to the target value of 103% Nr, the test would be considered complete.

In two prior successful OEI tests at 175 knots airspeed (record 50) and 165 knots airspeed (record 48), Nr decayed from 100% within about 3.5 to 4 seconds, consistent with initiation of the OEI test. Collective was reduced to 51% for test 50 and 43% for test 48. Nr stopped decreasing around 90% before recovering to 97% for test 50 and nearly 100% for test 48. The time from Nr decay to initial Nr recovery for both tests was between 2 and 3 seconds (see figure 9).




Figure 9. Plot comparing tests 48, 50, and 51.

For test 51, Nr began to decay about 3.5 seconds after test initiation, similar to the prior tests. Collective was reduced to 58%, and Nr stabilized near 92% but did not return to 97% or higher as in the previous tests. After 6 seconds, a vibration near 6 Hz was seen in the collective and longitudinal cyclic inputs that was not present in the earlier tests. After 7 seconds, Nr stopped recovering. When collective was increased between 10 and 13 seconds and again between 16 and 17.5 seconds, Nr slowed, and, by 18 seconds, it had decreased to below 80%. After 10 seconds, cyclic input activity increased, as did the roll response. The helicopter's roll and pitch responded to cyclic input throughout the accident flight.

The red main rotor blade was instrumented to record blade flapping; as Nr decreased after 16 seconds, the out-of-plane flapping motion increased. At 20.4 seconds, the string potentiometer that measured blade flapping motion stopped functioning due to excessive flapping. At 20.7 seconds, a large aft cyclic input reached peak value. Within two rotations of losing the flapping signal, one or more of the main rotor blades severed the tail boom from the aircraft, and all data recording and telemetry ended.

As noted above, an oscillation occurred in the collective and cyclic control inputs during the accident test sometime after 6 seconds; the oscillation was not present during the previous test records and indicated a vibration in the structure and controls near 6 Hz. This vibration was not a single mode of vibration at exactly 6 Hz throughout the flight; the frequency of the vibration changed slightly through the test as rotor speed changed and various airframe and rotor modes were excited. This 6-Hz vibration was distinctive, grew in amplitude, and affected the entire helicopter and the flight crew.

After 7 seconds, the vibration was well defined, and the amplitude began to grow. At 10 seconds, the amplitude grew before decaying again after 12 seconds. (This growth was described as a "blossom" in the vibration.) The appearance of the 6-Hz oscillation corresponded with an Nr of about 92%. As Nr stayed near 92%, the 6-Hz vibration grew in amplitude from around 7 seconds until 11 seconds. At 11 seconds, Nr slowed below 90%, and the 6-Hz amplitude decreased. At 13.5 seconds, Nr began to increase from 86%, and as Nr again approached 92%, the 6-Hz amplitude increased. The amplitude of the vertical acceleration was near ± 2.5 G at 6 Hz around 11 seconds and again after 16 seconds. (G is a unit of measurement of acceleration; 1 G is equivalent to the acceleration caused by the earth's gravity [about 32.2 ft/sec2].) For comparison, earlier test records showed variations in vertical acceleration no greater than ± 0.3 G. The 6-Hz vibration appeared in the control inputs, especially the collective, starting before 7 seconds.

The investigation focused on the source of the 6-Hz vibration. The lead-lag (in-plane) motion of a rotating rotor system can produce frequencies in the fixed (nonrotating) system (the frequency at which the rotor system conveys motion into the fixed system). The investigation focused on two significant in-plane rotor modes: the cyclic regressing mode and the scissors mode. (A cyclic mode occurs when rotor blades lead and lag in such a way that the hub of the rotor begins to orbit about its axis of rotation. The mode is regressing if the time it takes the hub to make one full cycle is slower than one full rotation of the blades around the hub. For the scissors mode, the lead-lag motions of the blades act in such a way that adjacent blades move together and apart in a scissoring motion. In forward flight, the scissors mode produces a fore-aft motion of the main rotor mast due to aerodynamic forces.) The fixed-system frequency of the main rotor cyclic regressing mode is 2.6 Hz at 100% Nr and drops to 2.4 Hz at 92% Nr. The fixed-system frequency of the main rotor scissors mode is 6.8 Hz at 100% Nr and drops to 6.2 Hz at 92% Nr. The fixed-system frequency of the tail rotor cyclic regressing mode is 6.6 Hz at 100% Nr and 5.4 Hz at 92% Nr.

During the accident test, the main rotor scissors mode was excited, unexpectedly, at a lower frequency in the fixed system due to the lower Nr. Initially, as Nr was between 100% and 93%, the tail rotor primarily exhibited cyclic regressing in-plane motion, and the pilot-seat vertical vibration frequency followed that frequency. The amplitude of this response was less than 0.2 Gs and consistent with prior tests. At the start of the accident test, the main rotor primarily exhibited cyclic regressing in-plane motion, which was expected. At 92%, the tail rotor in-plane cyclic regressing mode and the first vertical bending mode of the helicopter coalesced near 5.4 Hz. (The first vertical bending mode is the lowest frequency mode at which the aircraft fuselage oscillates about its lateral axis [both nose and tail flex up, then both nose and tail flex down relative to the center portion of the fuselage].) As Nr decreased toward 92%, the primary main rotor in-plane motion shifted from cyclic regressing to scissors. Around 92%, the main rotor scissors in-plane motion was near 6 Hz, and, by 6.5 seconds, the pilot-seat vertical acceleration responded at the main rotor scissors mode frequency, indicating that the fuselage of the aircraft was responding to the scissors mode. The main rotor's shift to the scissors mode produced a frequency around 6 Hz that began dominating the vibratory signature of the tail rotor and the fuselage and, by 7 seconds, had affected the controls.

From 5 to 11 seconds, Nr stayed between 90% and 93%, and the amplitude of the pilot-seat vertical acceleration increased markedly from less than ± 0.1 G to greater than ± 1 G. After 12 seconds, a collective control increase resulted in a further reduction in Nr, which coincided with a reduction in the pilot-seat vibration about the 14-second mark. As the test continued, the amplitude of the vibration grew again in all channels where it was present.

Two sources were determined to have increased the amplitude of the helicopter's 6-Hz frequency response:

  1. Biomechanical feedback into the collective control
  2. Cyclic stir in the swashplate driven by the attitude and heading reference system (AHRS)

Determining the separate contributions of the biomechanical feedback and the AHRS to the increase in amplitude was not possible with the flight data. The evidence for biomechanical feedback is seen in the trace of pilot collective control after 6.5 seconds, which shows the pilot's control stick moving at the 6-Hz frequency. The pilot's collective control oscillations result in further amplification of the main rotor scissors mode, further amplifying the vertical seat vibration and increasing the collective stick oscillation. Since the collective was being physically cycled at 6 Hz, the control laws would send a corresponding (6-Hz) command to the tail rotor as antitorque compensation. The biomechanical feedback loop appears to attenuate after 10 seconds (and again at 16 seconds as seen by reductions in the pilot-seat vertical vibration and collective control oscillation at those times).

During the accident flight, excitation of the airframe's first bending modes (lateral and vertical) induced the AHRS to respond with inputs intended to stabilize the aircraft. The AHRS was intended to work with the control laws as though the fuselage was a rigid body responding to wind gusts or similar low-frequency inputs and was not intended for handling a 6-Hz vibration. Although the AHRS included filters on the signal outputs, the filters did not specifically target the 6-Hz stirring commands to the swashplate. The stirring actions of the AHRS system at this (~6 Hz) frequency were considered to be a driver of the scissors mode amplification of the main rotor.

The main rotor scissors mode had been encountered at 100% Nr (and produced a 6.7-Hz vibration) in two previous tests at lower airspeed but in high load-factor banked turns, where the rotor blades are highly loaded. Specifically, in the previous tests, when Nr was 100%, the scissors mode was at 6.8 Hz as expected. The tests were at a lower airspeed (145 to 152 knots) but included high blade loading due to increased load factor in a banked turn. In both tests, the vibration quickly damped out as the blade loading was reduced. Previous experience demonstrated that the scissors mode was well damped at 100% Nr. The high forward speed of the accident test produced a similar highly loaded aerodynamic environment for the rotor blades. One aspect of the main rotor's aerodynamic environment can be described by examining the aircraft's advance ratio (true airspeed/blade tip speed) in relation to the blade loading. High blade loading and high advance ratios produce a more complex aerodynamic environment. In all tests, the scissors mode response was only encountered on the outer edge of the blade-loading/advance ratio environment and indicate that a complex aerodynamic environment was needed to excite this response.

While the scissors mode was quickly damped out in the earlier tests, it grew in amplitude during the accident test record until the whole aircraft was vibrating at that frequency. The lower frequency of the scissors mode during the accident test due to the reduced Nr allowed biomechanical feedback into the controls, and the response of the AHRS system through the control laws increased the amplitude of the scissors mode response. The manufacturer will focus on mitigating the biomechanical feedback and the AHRS-induced swashplate stirring via control law filtering to prevent the amplification of the scissors mode response.

The vibration loads experienced during the accident test were outside the parameters for certification testing for the Garmin PFD and GTC displays. Because of the criticality of the PFD and GTC for flight information, a postaccident test was conducted to observe the performance of these displays when exposed to unusually high vibration loads. The displays were mounted onto a shake table, and a vibration profile similar to the accident was applied to the hardware. The GTC and PFD functioned normally throughout the entire test, and no faults were recorded. Displays presented information continuously with no distortion or screen blanking, and touch functionality on the GTC and bezel button functionality on the PFD functioned properly.

Organizational And Management Information

The Bell 525 program consisted of the conceptual design phase, preliminary design review, critical design review, flight readiness review (FRR), developmental flight testing, and certification flight testing. Investigators interviewed Bell design and test engineers who described the pace of the Bell 525 program at the time of the accident as fast but not unreasonably so. Personnel described specific pressure felt during the time of the first flight test in Amarillo, Texas, in mid-2015. When personnel were supporting the first flight, they commonly worked 7 days per week and logged between 60 and 70 hours of work per week. Many described morale to be low during the first flight. Once the flight test program moved back to Arlington, Texas, in September 2015, the pace slowed, and many reported improved morale. Original certification for the Bell 525 was scheduled for mid-2016, but the program faced various setbacks during initial design. Most engineers interviewed stated that they had not received undue pressure from management to complete tasks. No monetary incentives (outside of overtime pay) were provided to employees, and employees were not concerned about negative consequences when raising concerns. Employees described Bell's safety culture as "good." At the time of the accident, design and test engineers reported working about 10 hours of overtime per week on average.

The chief engineer for the Bell 525 program was responsible for all 525 testing, certification activity, and structures (drive, rotor, and airframe). Six discipline areas reported to the chief engineer: airframe engineering, systems engineering and certification, rotors engineering and component test, drive systems, flight technology, and flight test/experimental test and evaluation. The 525 program flight test integrated product team (IPT) consisted of 12 flight test engineers and 3 instrumentation engineers. Six of the 12 flight test pilots in Bell's experimental test and evaluation department were assigned to support the 525 program. The chief engineer worked closely with the air vehicle IPT; the air vehicle lead was responsible for flight control system and software, control laws, avionics, electrical system, propulsion, hydraulic system, fuel system, and environmental controls.

According to a Bell avionics engineer, before the FRR, the avionics group developed a spreadsheet of all the CAS functions and whether they were designated as critical or not critical for flight safety; they tested the safety-of-flight functions using scripts or a CAS manual test. The results for each function were "passed," "passed with exception," "failed," or "safe." A "failed" state indicated that the alert did not annunciate or annunciate in time.

According to the Bell 525 lead test pilot, if no pilot action was required, then the alert would be an advisory or would only be available on the maintenance page. If pilot action was required, they referred to the following CAS philosophy: for anything requiring pilot action immediately, it was a warning; if it required action, but not immediately, it would be a caution; or, if action was required much later, it would be advisory information. The Bell 525 lead test pilot described the difference between caution and advisory as a gray area. "Safety critical" referred to messages for which if nothing was done, it would "break the helicopter, or cause the helicopter not to be flown right, or it would exceed a limit." All the warnings counted as safety critical, as did some cautions. He stated that the decision for what was critical came from the cockpit working group, which worked with other systems groups, pilots, a safety representative, and the individual who conducted design safety analysis, and all the decisions were documented. The cockpit working group created the list of safety-critical items. The list was then vetted and sent to the avionics group for implementation.

According to Bell Helicopter, test pilot duties included planning and conducting experimental flight tests in helicopters and tiltrotor aircraft; conducting other flight test operations; maintaining flight currency and traveling in support of Bell Helicopter flight operations; completing flight analysis and flight evaluations of aircraft, test planning, and flight test reports; planning and executing engineering and experimental test flights of new aircraft and/or systems; evaluating and reporting on data gathered during test flights; demonstrating safe and efficient test planning and execution; interfacing with the project team to ensure successful accomplishment of the test program; and making recommendations regarding operational effectiveness of systems, aircraft handling qualities, and design improvements.

In December 2015, the flight test group had put in place a personal risk assessment tool that each pilot could complete before flying. Pilots were encouraged to fill out the risk assessment every day; it was not mandatory. The accident pilots did not have a risk assessment on file for the day of the accident.

The majority of pilot training consisted of time in the RASIL engineering simulator, which is an accurate engineering representation of the cockpit, including control feel, and visual in-flight representation projected on a screen that wrapped around the cockpit. Next to the RASIL cockpit was a separate "Rig Room" containing actual flight hardware (hydraulic servos) rigged to apply flight loads into engineering representations of related hardware. When a control was moved in the RASIL cockpit, hardware would respond to the command in the Rig Room. Pilots assigned to the 525 program would routinely operate the RASIL while developing flight procedures, validating software changes, and reviewing fight test plans.

Although there were no written logs showing when a pilot or flight crew worked in the RASIL, the Bell chief test pilot believed the accident flight crew had reviewed the test card for the mishap flight in the RASIL, and the RASIL engineers stated that the accident flight crew routinely worked in the RASIL. Typical training flow would involve two RASIL sessions for each test flight. If the pilots had been in the RASIL within 2 weeks of a test flight, they were considered current.

Additionally, both the pilot and copilot had accumulated many ground testing hours validating the OEI training mode in the helicopter.

Two pilots from the flight test group were scheduled as the chase aircrew flying a Bell 429 helicopter. The duties of the chase helicopter included monitoring the test area for other aircraft, monitoring the flight for safety issues, and observing and monitoring the test helicopter as it executed the test card.

The chase helicopter was in radio communications with the test helicopter and the test director. After a few circuits of the traffic pattern, the chase helicopter positioned itself behind the test helicopter, and they departed to the test area as a flight of two. Once in the test area, at the higher test airspeeds, the chase helicopter would fall farther behind the test helicopter because of its airspeed limitations but would rejoin the test helicopter as it slowed and recovered from the maneuver. The chase helicopter crew reported seeing no distractions or abnormalities outside of the accident helicopter.

Additional Information


Development of Biomechanical Filters on Collective


Biomechanical feedback in the aircraft design industry refers to unintentional control inputs resulting from involuntary pilot limb motions caused by vehicle accelerations. Biomechanical feedback is usually addressed using control friction and control input filtering. The accident helicopter did not have a filter on the collective control to address biomechanical feedback. Bell engineers stated that past experience had never shown a need for filtering the collective control. Filters did exist in the cyclic control to address pitch and roll rates in addition to biomechanical feedback.

Bell used a control diagram used for aero-servo-elastic analysis on the Bell 525. Before the accident, the model did not use correlation factors (modeling adjustments based on flight test data), model the main rotor in-plane scissors mode oscillations, or incorporate collective pilot biomechanical feedback in the vertical axis. The pilot model provided gain values in each axis in terms of "inches of stick per g of acceleration." In the cyclic control, the pilot model was developed using experimental data where pilots were shaken laterally on a shake table. This shake-table analysis was done for a side-stick cyclic configuration and a traditional-stick cyclic configuration. Shake-table analysis was never performed on the collective control (traditional stick or side stick) using vertical acceleration. Engineers said that they had never seen negative stability during flight test or in flight when using a pass-through filter for the collective. The control laws engineer for the Bell 525 described that their goal was to manage lag at the 1- to 2-Hz frequency for pilot control. A filter at the higher frequencies could still introduce lag at the lower frequencies. Filters would not be added unless deemed necessary for the high-frequency stability while tuned in order to not decrease margins at low frequencies.

When Bell developed feedback filters, control law engineers designed for "no adverse effects" on handling qualities. They usually only discussed critical items. The control engineer interviewed did not recall that the vertical axis was deemed critical from a biomechanical feedback standpoint. For the vertical axis, filters were only added if needed, based on flight testing. The control laws engineer said that had they built a pilot model for the collective side stick with a shaker mock up, they could have developed a more accurate transfer function, but they may not have known to add an aerodynamic factor to it for main rotor regressive scissors mode. Even with an aerodynamic model, they would not have been able to validate it without the accident data. He suggested that, for flight testing, they could have tested the lower Nr at low-speed testing and expanded the envelope. This was not something done in the past because previous helicopters could not control Nr as precisely as the 525 since the 525 has fly-by-wire and full authority digital engine control (FADEC) and because it was not required, as this is not a part of the steady operating flight envelope and analysis capabilities did not exist to predict this type of event.

Regarding validating aero-servo-elastic models, Bell had data for steady-state conditions, and the models were 80 to 90% accurate for those dynamics; however, the highly dynamic flight regimes were more difficult to model. They typically modeled those by using steady-state values and adding a correlation/correction vector that was derived from flight test data.

In the design phase of the Bell 525, the rotor dynamics group evaluated how the helicopter would perform at different Nr. They expected steady-state, power-off, and transient conditions and limitations. The output of this analysis provided a range of rpms that fed the limitations document used to design the helicopter. The limitations that were generated from the analysis were typically considered draft until they could be verified in flight test.

The Nr operating range spanned from the minimum Nr required for lift and the maximum Nr that would overspeed the powerplant. During low airspeed flight, the maximum Nr was defined to be 103% in order to have more energy available in the rotor in the event of a single-engine failure. During high airspeed flight, the maximum Nr was 100%, and the Nr upper limit would transition to this value when flying above a specified airspeed (for example, 55 knots).

Flight testing was conducted at set points for continuous flight at 103% Nr and 100% Nr, as these are the designed set points for continuous operation within the certified flight envelope. During normal operation, the helicopter's FADEC prevented Nr from drooping below these two set points with all engines operating (as long as power required was not more than the AEO power available). Continuous flight below the Nr set point could only be reached with an OEI or all-engines-inoperative (AEI) condition. The AEI case tested continuous flight down to 90% Nr. No testing of continuous rpms below 100% was conducted in any OEI condition as the maneuvers were expected to be transient in nature.

The OEI maneuver resulted in reduced Nr flight within the green arc on the Nr display. Bell design team members had different understandings of whether it was expected for pilots to fly at lower Nr in the normal operating range (also known as the green arc on the Nr display):

  • A performance engineer specified that he expected the normal operating regime for rpm to be where you could fly within these limits continuously.
  • A control laws engineer considered flying at 185 knots at 90% Nr to be outside of the normal flight envelope. Tolerance would be above or below 5% of normal Nr range.
  • The design team did not expect to fly outside of this range. Their idea was that for certain maneuvers, it was okay to droop when there were other priorities to test. Their expectation was not to fly at 93% Nr continuously when everything was healthy.
  • The flight technology specialist at the time of the accident stated that the Nr green arc could mean different things to different people and was often discussed within the team. He considered 90 to 100% Nr to be transient for an AEO condition. The colors presented in the PSI were a precedent from the Bell 429 program.

There were also varying understandings of the definition of "transient." One performance engineer considered a 5-second "sustained rpm" not to be transient while other engineers considered 30 seconds to be considered steady state. The flight technology team lead said that the definition of transient was different for different people.

Test pilots suggested in postaccident interviews that there could be multiple reasons why a pilot would fly at 92 to 93% when recovering from an OEI maneuver. The chase test pilot stated that flying at 92 and 93% Nr was not necessarily abnormal in an OEI condition. Further, Bell's chief test pilot provided reasons for extended flight in that rpm regime during this maneuver:

  • If Nr had stabilized, the pilot may not have been in a rush and could have been initiating a slow recovery that resulted in extended time at 92% Nr.
  • If the pilot was maneuvering the collective and felt something abnormal, the pilot instinct would be to stop moving the collective in case the abnormality originated from manipulating the collective. This could result in flight at a lower rpm.

Bell provided examples of three test points in the Bell 429 developmental test program in which pilots remained in the 88 to 96% Nr range for about 20 seconds during the OEI maneuver (between 129 and 135 knots). According to Bell, because the Bell 429 did not encounter any unusual behavior (rotor mode/vibration) during the test points with the extended recovery time, the pilots did not receive negative feedback on the recovery time.

Human Performance Research and References


Studies indicate that visual acuity is negatively affected by vertical vibration, particularly in the 5- to 7-Hz frequency range (Lewis and Griffin 1980a; Lewis and Griffin 1980b). Results indicated that reading speed and accuracy degraded for amplitudes as low as 0.1 G (McLeod and Griffin 1989; Griffin and Hayward 1994). Further studies show that visual performance decreases with increasing vibration amplitude (Shoenberger 1972; Griffin 1975; Griffin 2012).

Research suggests that performance degrades in the presence of vibration and is particularly poor in the 6-Hz range as limb motion can be greater than input amplitudes at that frequency (Moseley and Griffin 1986; Collins 1973; Griffin and Hayward 1994; McLeod and Griffin 1986; Crossland and Lloyd 1993; Holcombe and Holcombe 1997; Wertheim et. al. 1995). Limb motion is also more complex given the coupled dynamics of the human body where acceleration in a single axis could result in limb motion in all six axes (McLeod and Griffin 1986; Griffin 2012; Paddan and Griffin 1988).

Collins, A. M. 1973. "Decrements in tracking and visual performance during vibration." Human Factors 15 (4): 379-393.

Crossland, P., and A. R. J. M. Lloyd. 1993. "Experiments to quantify the effects of ship motions on crew task performance – Phase I, motion induced interruptions and motion induced fatigue." Technical Report DRA/AWMH/TR/93025. Farnborough, UK: Defence Research Agency.

Griffin, M. J. 1975. "Levels of whole-body vibration affecting human vision." Aviation, Space, and Environmental Medicine 46 (8): 1033-1040.

Griffin M. J. and R. A. Hayward. 1994. "Effects of horizontal whole-body vibration on reading." Applied Ergonomics 199 25 (3): 165-169.

Griffin, M. J. 2012. Handbook of Human Vibration. Academic Press.

Holcombe, S. and F. D. Holcombe. 1997. "Motion effects on cognitive performance." Experiments at the Naval Biodynamics Laboratory, 1993-1994. CRDKNSW-HD-1423-02 Carderock Division, Naval Surface Warfare Center.

Lewis, C. H. and M. J. Griffin. 1980a. "Predicting the effects of vibration frequency and axis, and seating conditions on the reading of numerical displays." Ergonomics 23 (5): 485-501.

Lewis, C. H. and M. J. Griffin. 1980b. "Predicting the effects of vertical vibration frequency, combinations of frequencies and viewing distance on the reading of numeric displays." Journal of Sound and Vibration 70 (3): 355-377.

McLeod, R. W. and M. J. Griffin. 1989. "Review of the effects of translational whole-body vibration on continuous manual control performance." Journal of Sound and Vibration 133 (1): 55-115.

McLeod, R. W. and M. J. Griffin. 1986. A Design Guide of Visual Displays and Manual Tasks in Vibration Environments. Part II: Manual Tasks. ISVR Technical Report no. 134.

Moseley, M. J. and M. J. Griffin. 1986. A Design Guide for Visual Displays and Manual Tasks in Vibration Environments. Part I: Visual Displays. ISVR Technical Report no. 133

Paddan, G. S. and M. J. Griffin. 1988. "The transmission of translational seat vibration to the head—II. Horizontal seat vibration." Journal of Biomechanics 21 (3): 199-206.

Shoenberger, R. W. 1972. "Human response to whole-body vibration." Perceptual and Motor Skills 34: 127-160.

Wertheim, A. H., R. Heus, and J. Kistemaker. 1995. "Human energy expenditure, task performance and sea sickness during simulated ship movements." Report TNO-TM 1995-C29. TNO Human Factors Research Institute, Soesterberg, The Netherlands.





NTSB Identification: DCA16FA199
14 CFR Part 91: General Aviation
Accident occurred Wednesday, July 06, 2016 in Italy, TX
Aircraft: BELL 525, registration: N525TA
Injuries: 2 Fatal.

This is preliminary information, subject to change, and may contain errors. Any errors in this report will be corrected when the final report has been completed. NTSB investigators either traveled in support of this investigation or conducted a significant amount of investigative work without any travel, and used data obtained from various sources to prepare this aircraft accident report.


On July 6, 2016, about 1148 central daylight time, an experimental Bell 525 helicopter, N525TA, broke up inflight and impacted terrain near Italy, Texas. The two pilots onboard were fatally injured and the helicopter was destroyed. The flight originated from Arlington, Texas, as a developmental flight test and was conducted under the provisions of 14 Code of Federal Regulations Part 91. Visual meteorological conditions prevailed at the time of the accident.







ELLIS COUNTY -- Two fatalities have been confirmed in a helicopter crash in Ellis County.

DPS and the Ellis County Sheriff's Office are on the scene of the crash near FM 876 and Bell Branch Road.

Bell Helicopter confirmed two people were killed in the crash just before 12 p.m. on Wednesday. The National Transportation Safety Board said the crash occurred in Chambers Creek, Texas, about nine miles northwest of Corsicana.

The Texas Department of Public Safety says the first 911 call came in at 11:50 a.m.

Bell said in a statement its helicopter was "conducting developmental flight test operations on the Bell 525 at our Xworx facility in Arlington, Texas, that resulted in a helicopter accident."

A Bell spokesperson said there was one "chase" helicopter present as well, which is standard in test flight scenarios.

No one else was injured.

Lynn Lunsford with the Federal Aviation Administration says the helicopter had two people on board when it crashed at about 11:45 a.m. The helicopter was destroyed, Lunsford said.

Investigators with the FAA are heading to the site, and the National Transportation Safety Board was notified.

Two farmers who witnessed the crash told News 8 they saw the helicopter flying from the northeast and came into contact with a transmission line.

Lonny Haschel with DPS says the helicopter did not strike the line and electricity transmission was unaffected.

An eyewitness who works at a nearby body shop told News 8 he heard two "booms" and saw the helicopter immediately descend.

He asked not to be identified.

"There was nothing the pilot could do," he said.

TXDOT has also placed roadblocks south of the crash site on L.R. Campbell Road

Stephanie Parker with the Ellis County Office of Emergency Management said on Twitter the FAA is closing the airspace above the crash location.

Bell says the 525 first began test flights in 2015. The aircraft is set to be certified for commercial sale in 2017, according to a spokesperson. This is the first crash of a Bell 525.

Original article can be found here:  http://www.wfaa.com





FORT WORTH -- A twin-engine Bell helicopter on a test flight crashed Wednesday morning in southern Ellis County, killing two crew members, the company said in a statement.

The people killed were the only ones on board, said Sgt. Lonny Haschel, Department of Public Safety spokesman.

The Bell Helicopter B525 Relentless crashed around 11:45 a.m. three miles northwest of Italy, Texas, off FM 876 north of Chambers Creek, authorities said. The aircraft was destroyed.

“This is a devastating day for Bell Helicopter,” Bell’s statement said. “We are deeply saddened by the loss of our teammates and have reached out to their families to offer our support.”

The crew members’ names have not been released.

The FAA was investigating at the accident site, and the National Transportation Safety Board has been notified, FAA spokesman Lynn Lunsford said.

The FAA and NTSB do not release names of pilots or passengers.

Two farmers told WFAA that they saw the helicopter flying from the northeast when it hit a power line and exploded.

Ellis County Emergency Management tweeted about 1 p.m. that the FAA closed the airspace above the crash.

Bell unveiled the 525 Relentless model in February 2012, saying that the long-range helicopter was designed and built aimed at the commercial market. The helicopter, which could be used to fly workers to offshore oil rigs, can carry up to 20 passengers and has a maximum range of 570 nautical miles.

The aircraft has computer-controlled flight controls known as fly-by-wire that Bell said would make it easier and safer to fly.

On a quarterly earnings call in April, Scott Donnelly, chief executive of Bell’s Rhode Island-based parent Textron, said the company had built two 525 aircrafts for flight testing with a third expected soon.

“The Relentless is meeting or exceeding all of its performance objectives, including having demonstrated a top speed in excess of 200 knots,” Donnelly said on the call. “The effectiveness of 525’s integrated fly-by-wire design has been evident during the testing, by the aircraft’s superior in-flight handling, maneuverability and stability.”

Bell anticipated having the 525 Relentless certified next year and planned to deliver its first aircraft to customers in late 2017. The company has received several dozen orders for Relentless helicopters from customers in China, Kuwait, United Arab Emirates and Ireland.

Although a pricetag for the commercial helicopter has not been made public, similar-sized helicopters usually cost at least $18 million to $20 million a piece, said Richard Aboulafia, an aviation analyst at the Teal Group. Bell has invested hundreds of millions of dollars into the Relentless program as it looked to ramp up commercial sales as orders for its military aircraft, such as the V-22 tiltrotor, have slowed.

Aboulafia estimates that, depending on the investigation, the crash could delay the Relentless helicopter’s first delivery anywhere from six months to a year.

“So many of [Bell’s] defense programs are ramping down over the next few years that they’re counting on rejuvenating the civil product line as a way of coping with this downturn,” Aboulafia said. “This crash doesn’t kill the program, but it does delay it.”


Original article can be found here: http://www.star-telegram.com

Two people are dead after a fiery helicopter crash near Italy Wednesday, Ellis County Emergency Management officials said.

An experimental twin-engine Bell Helicopter 525 Relentless, with two people aboard, crashed about about 11:45 a.m. Wednesday while performing flight test operations, Bell Helicopter said.

The names of those killed in the crash have not been confirmed.

The aircraft came down in a field along Farm-to-Market Road 876 north of Chambers Creek, northwest of Italy, according to Trooper Lonny Haschel with the Texas Department of Public Safety and the Federal Aviation Administration.

Initially, it appeared that the helicopter may have struck a nearby utility pole because the top of the pole is black and appears to have been charred. However, Haschel said Brazos Electric Company investigated and determined the aircraft did not hit the pole. In addition, there was no power outage as a result of the crash.

Most of the helicopter's debris was localized to the crash site, though parts of the helicopter were spotted hundreds of feet away including a section of the helicopter's boom located approximately 1,500 feet to the southeast.

There are two other helicopters landed near the scene, one of which was registered to Fort Worth-based Bell Helicopter who released the following statement after the crash:

On July 6, 2016, a Bell 525 was involved in an accident while conducting developmental flight test operations south of our Xworx facility in Arlington, Texas. Unfortunately, the accident resulted in a loss of two crew members. This is a devastating day for Bell Helicopter. We are deeply saddened by the loss of our teammates and have reached out to their families to offer our support. Bell Helicopter representatives are onsite to assess the situation and provide any assistance to local, state, and federal authorities. At this time we ask for your understanding as we work through all of the details. We will continue to provide updates as more information becomes available.

The cause of the crash has not yet been determined.

The FAA is en route to the crash site to investigate. The National Transportation Safety Board has been notified.

The crash site is approximately 45 miles south of Dallas/Fort Worth International Airport.

Original article can be found here:   http://www.nbcdfw.com
